BLAGDON ®

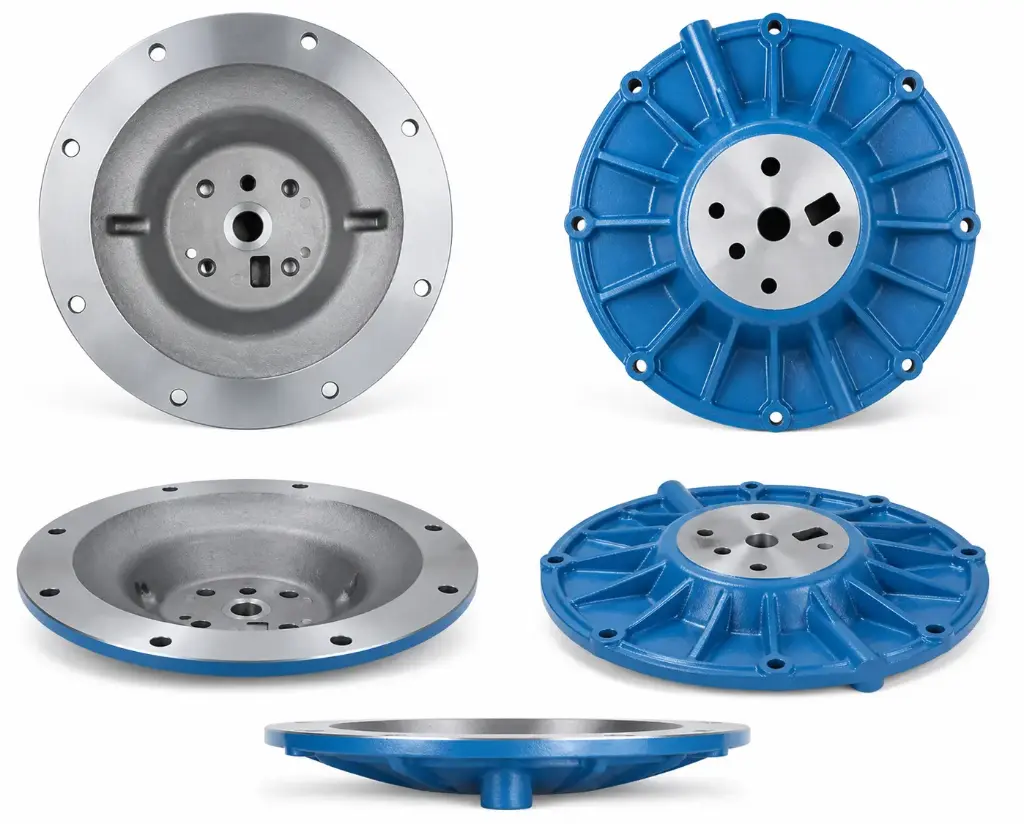

INNER COVER

Part No: 196.165.156
★★★★★ New ● In Stock

Pack of 1

https://test.vistarb2b.com/web/image/product.template/2298/image_1920?unique=3b42cc8
Price
₹ 25,447.50 ₹ 16965.00
Quantity
Add to Cart
Buy Now
In Stock

    This combination does not exist.

    👁 3452 Customers Visited 🛒 39 Customers Purchased 📦 156 Units Sold
    🚚 Ships in 1–2 days
    📄 GST Invoice
    ↩️ Non-returnable
    📍 Check Delivery
    Contact Us

    Share

    196.165.156: INNER COVER – A structural interior manifold plate or housing element that encloses internal pump mechanisms, acting as a separating boundary between atmospheric components and high-pressure zones.

    196.165.156: INNER COVER – A structural interior manifold plate or housing element that encloses internal pump mechanisms, acting as a separating boundary between atmospheric components and high-pressure zones.

    Key Features
    1. Rigid structural partition piece designed to separate external fluid chambers from internal air motor zones.
    2. Flat machined surface profile ensures uniform compression across corresponding static face seals.
    3. High-density composition absorbs localized pressure impacts from rapid internal shifting cycles.
    4. Pre-aligned, thread-matched mounting holes permit fast, straightforward field installation tasks.
    5. Protects delicate moving inner pilot components from external environment contaminants.
    Technical Specifications
    Manufacturer / BrandBlagdon Pump
    Component ClassificationStructural Air-Side Diaphragm Inner Chamber Back Plate
    Pump Fitment Compatibility3" Large-bore industrial pump casting frame layouts
    Primary MaterialHeavy Ductile Iron / Cast Carbon Steel Alloy
    FunctionServes as the static internal containment wall containing motive air pressures
    Max Working Pressure125 PSI (8.6 Bar) pneumatic continuous design rating
