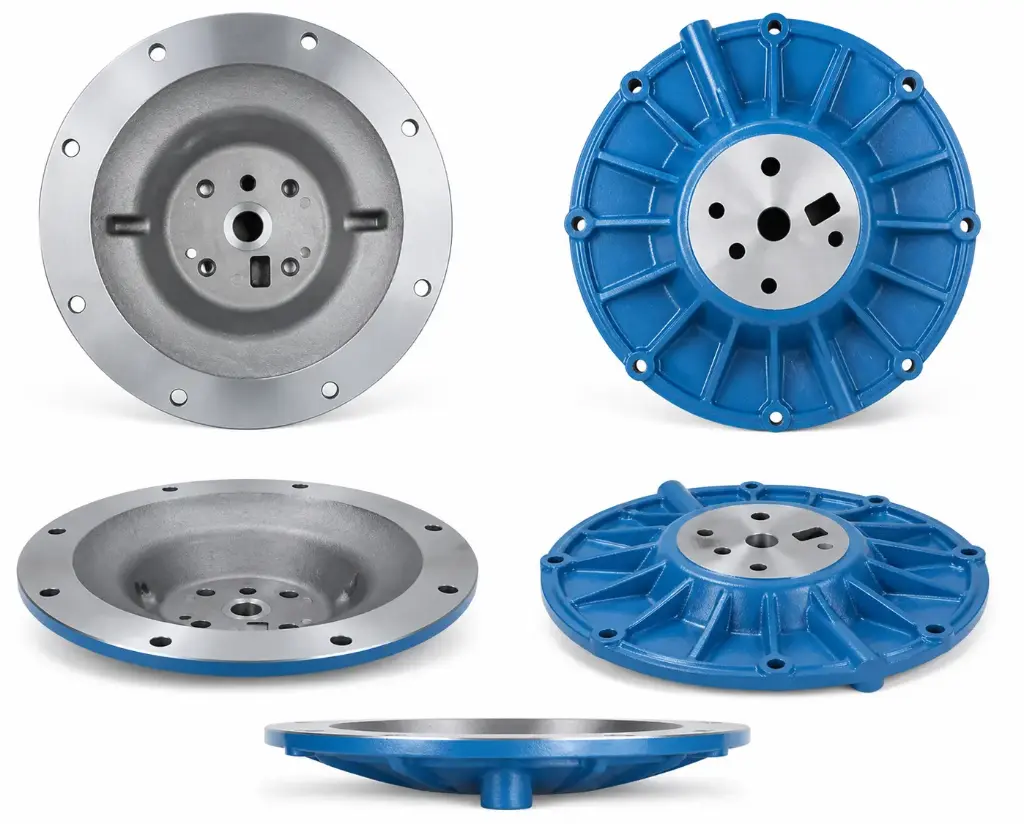

CHAMBER INNER
Part No: 196.165.157
Pack of 1
196.165.157: CHAMBER INNER – The internal volumetric casing wall or inner chamber module that houses the diaphragm assembly, containing fluid displacement forces during rapid alternating strokes.
196.165.157: CHAMBER INNER – The internal volumetric casing wall or inner chamber module that houses the diaphragm assembly, containing fluid displacement forces during rapid alternating strokes.
Key Features
- High-volume internal fluid containment pocket engineered to handle pressurized wetted process media.
- Heavy-walled cast or molded construction resists fatigue stress failures across millions of cycles.
- Optimized internal contours minimize liquid turbulence and cavitation erosion during transitions.
- Features precision-machined port steps to ensure tight, leak-free seat and manifold interfaces.
- Provides the rigid mechanical boundary required for effective diaphragm fluid displacement.
Technical Specifications
| Manufacturer / Brand | Blagdon Pump |
| Component Classification | Air End Diaphragm Containment Main Chamber Housing |
| Pump Fitment Compatibility | 3" High-capacity reciprocating pump core frames |
| Primary Material | High-Strength Cast Aluminum / Ductile Iron option |
| Function | Encapsulates the shifting air volume driving the inner face of the diaphragm loops |
| Flatness Profile | Precision-machined outer mating rim to secure absolute sealing under load cycles |
