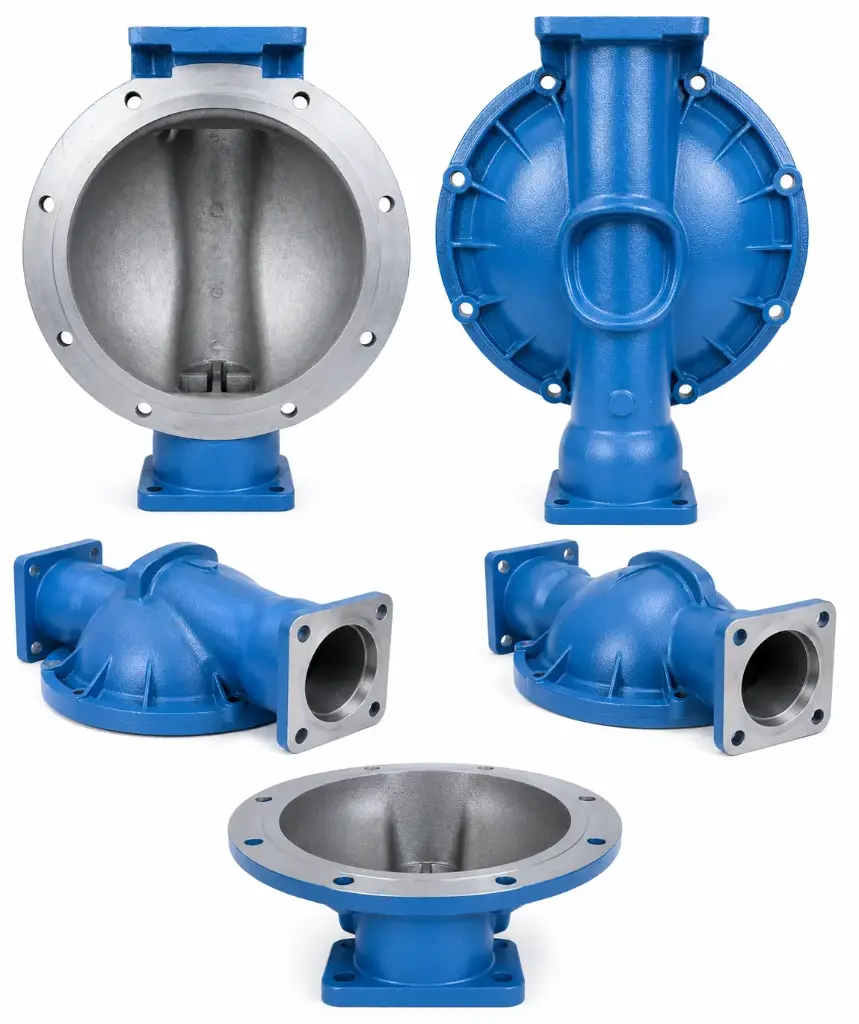

CHAMBER OUTER 3"
Part No: 196.200.156 L
Pack of 1
196.200.156 L: CHAMBER OUTER 3" – A heavy-duty, 3-inch capacity outer fluid chamber housing that forms the main pressure vessel wall of the pump end. It guides the fluid safely into the manifold ports during the discharge cycle.
196.200.156 L: CHAMBER OUTER 3" – A heavy-duty, 3-inch capacity outer fluid chamber housing that forms the main pressure vessel wall of the pump end. It guides the fluid safely into the manifold ports during the discharge cycle.
Key Features
- Oversized 3-inch wetted outer shell designed specifically for high-capacity industrial flow streams.
- Robust structural reinforcement ribs distribute intense clamping loads evenly around the perimeter lock.
- Chemical-resistant base metal or alloy build guards against aggressive process fluid scoring.
- Connects seamlessly with heavy piping manifolds to isolate heavy structural load strains directly.
- Deep profile accommodation layout provides full clearance for long-stroke diaphragm extensions.
Technical Specifications
| Manufacturer / Brand | Blagdon Pump |
| Component Classification | Heavy-Duty Liquid-Side Pressure Retaining Chamber Cover |
| Pump Fitment Compatibility | 3" Large-capacity high-flow process pump fluid ends |
| Primary Material | Cast Iron / 316 Stainless Steel / Heavy-wall Aluminum |
| Function | Encloses the high-volume fluid path block being forcefully displaced by the diaphragm |
| Max Fluid Pressure | 125 PSI (8.6 Bar) maximum hydraulic pressure confinement capability |
