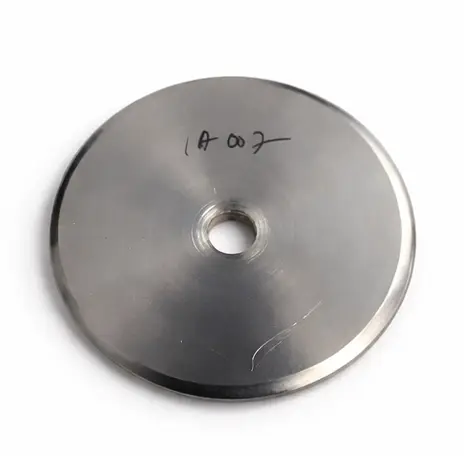

DIAPHRAGM BACKPLATE - (1A-007)
Part No: 1A-007
Pack of 1

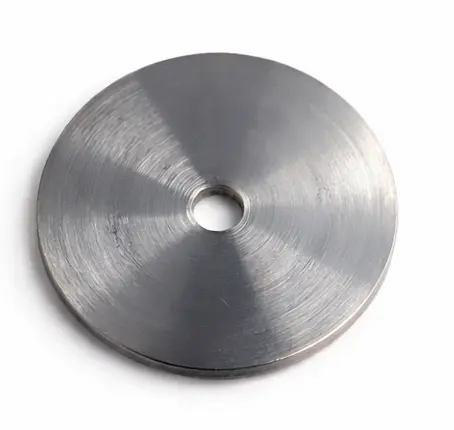

1A-007: DIAPHRAGM BACKPLATE - (1A-007) – A rigid metal backing disk designed to clamp tightly against the inner face of the diaphragm, distributing mechanical push/pull forces uniformly from the drive shaft.
1A-007: DIAPHRAGM BACKPLATE - (1A-007) – A rigid metal backing disk designed to clamp tightly against the inner face of the diaphragm, distributing mechanical push/pull forces uniformly from the drive shaft.
Key Features
- Rigid structural backing washer designed to distribute longitudinal stroke forces across the diaphragm.
- Contoured smooth radius edges eliminate sharp pinch points to maximize elastomer flex life.
- Heavy-duty construction keeps the flexible membrane from turning inside out during suction cycles.
- Provides a solid mechanical anchor point for high-torque fastening onto the central piston rod.
- Resists high dynamic shear stresses to protect wetted pump parts from fatigue fractures.
Technical Specifications
| Manufacturer / Brand | Blagdon Pump |
| Component Classification | Air-Side Diaphragm Inner Support Plate |
| Pump Fitment Compatibility | 1" Air motor section casing layouts |
| Primary Material | Zinc-Plated Carbon Steel / Hardened Aluminum |
| Function | Clamps the inner radius of the diaphragm against the central shaft to distribute flex forces |
| Finish Profile | Smooth radius face edges to prevent fabric/elastomer tearing under heavy load |
