BLAGDON ®

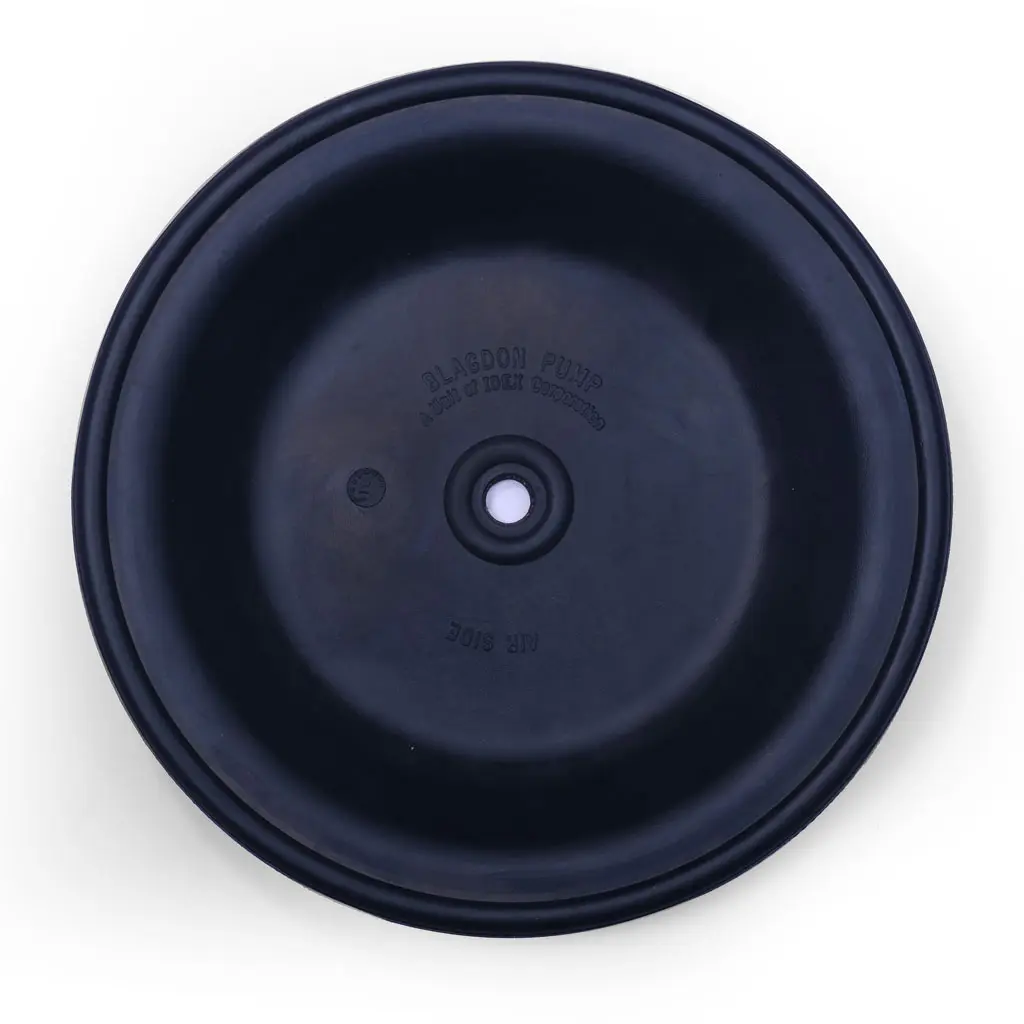

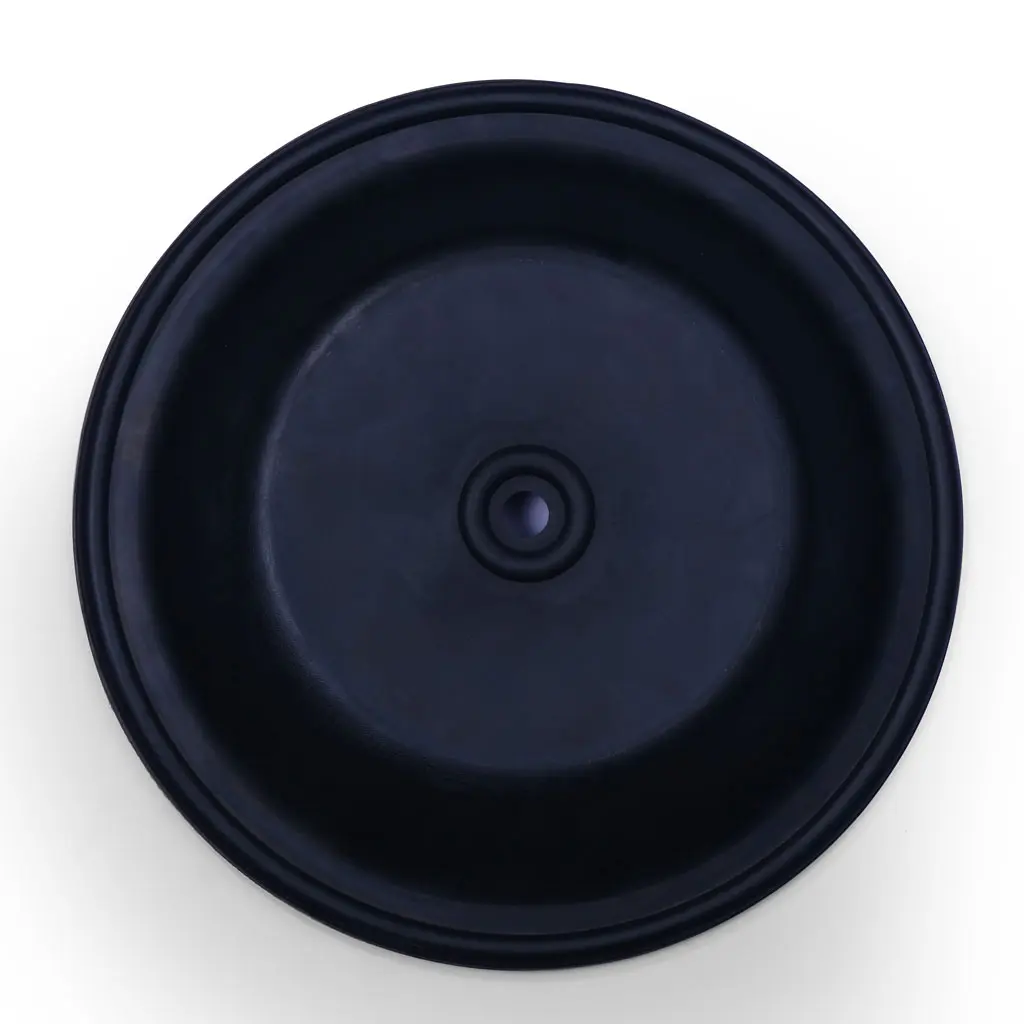

DIAPHRAGM (1B-001)

Part No: 1B-001
★★★★★ New ● In Stock

Pack of 1

https://test.vistarb2b.com/web/image/product.template/1515/image_1920?unique=3b42cc8
Price
₹ 22,544.93 ₹ 15029.95
Quantity
Add to Cart
Buy Now
Material: Standard
BACKUP BUNA BUNA N EPDM NEOPRENE PTFE PTFE BACKUP PTFE POLY SANTOPRENE SANTOPRENE BACKUP Standard
In Stock

    This combination does not exist.

    👁 2938 Customers Visited 🛒 48 Customers Purchased 📦 192 Units Sold
    🚚 Ships in 1–2 days
    📄 GST Invoice
    ↩️ Non-returnable
    📍 Check Delivery
    Contact Us

    Share

    1B-001: DIAPHRAGM (1B-001) – A flexible industrial replacement fluid displacement diaphragm sheet engineered to alternate between suction and discharge stroke cycles.

    1B-001: DIAPHRAGM (1B-001) – A flexible industrial replacement fluid displacement diaphragm sheet engineered to alternate between suction and discharge stroke cycles.

    Key Features
    1. Toughened elastomer formulation tailored for reliable, heavy-duty fluid displacement cycles.
    2. Maintains long operational flex life without stiffening or cracking in damp pump environments.
    3. Provides a high-integrity isolation barrier that completely locks fluids out of the air motor.
    4. Uniform thickness design guarantees balanced, steady suction lift performance profiles.
    5. Pre-punched bolt circle array allows swift compression locking onto the fluid chamber rim.
    Technical Specifications
    Manufacturer / BrandBlagdon Pump
    Component ClassificationGeneral Utility Flexing Chamber Elastomer Diaphragm
    Pump Fitment Compatibility2" Standard industrial pump architectures
    Primary MaterialNeoprene / Heavy-Duty Industrial Rubber baseline
    FunctionFlexes to create alternating suction and discharge forces inside the fluid loop
    Operating Temperature-10°F to 200°F (-23°C to 93°C)
