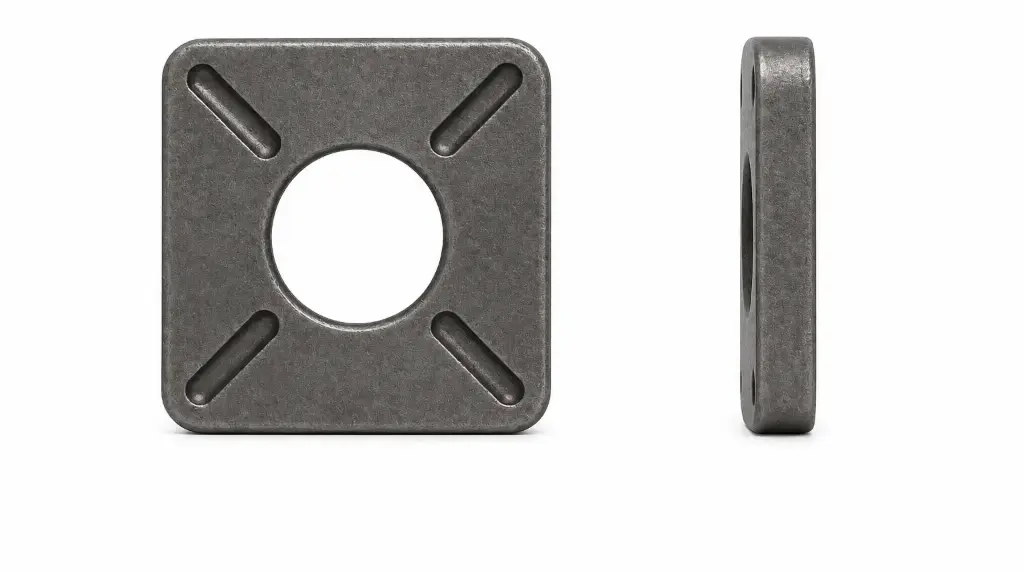

OUTER PLATE 1" (25-002)
Part No: 25-002
Pack of 1
25-002: OUTER PLATE 1" (25-002) – A 1-inch rigid metallic support plate that bolts directly onto the main connecting shaft, clamping the flexible pumping diaphragm firmly in position.
25-002: OUTER PLATE 1" (25-002) – A 1-inch rigid metallic support plate that bolts directly onto the main connecting shaft, clamping the flexible pumping diaphragm firmly in position.
Key Features
- inch thick, rigid structural reinforcement plate built to securely clamp flexible diaphragms.
- Eliminates sharp pinch points along its radius edges to maximize rubber flexible lifecycle hours.
- High tensile strength framing blocks the inner diaphragm from turning inside out during suction loops.
- Precision countersunk center template ensures perfectly centered locking onto the traveling drive shaft.
- Dampens high-frequency mechanical shock strains to prevent fatigue fractures along connections.
Technical Specifications
| Manufacturer / Brand | Blagdon Pump |
| Component Classification | Fluid-Side Diaphragm Outer Clamping Plate |
| Pump Fitment Compatibility | 1" Industrial chemical or utility pump configurations |
| Primary Material | Cast Steel Alloy / Hardened Aluminum |
| Function | Sandwiches the central radius of the diaphragm against the inner plate to secure it to the shaft rod |
| Mechanical Fitment | Precision machined flat interface profile to distribute clamping force evenly without pinching |
