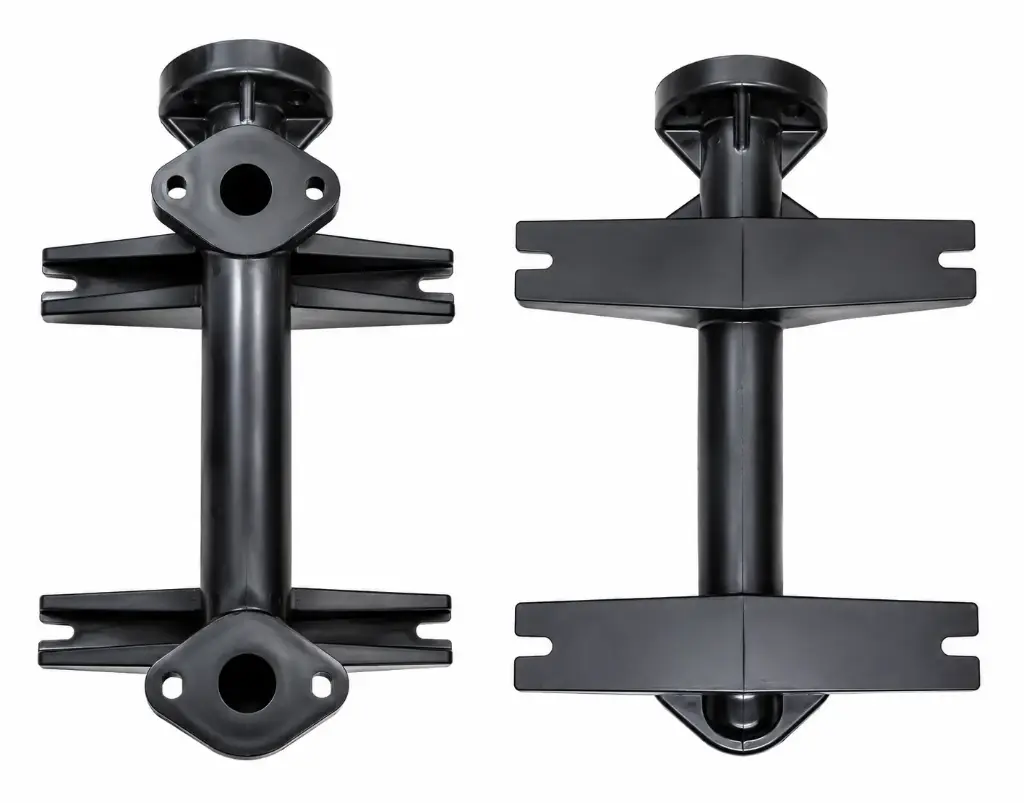

SUCTION MANIFOLD
Part No: 25-004
Pack of 1
25-004: SUCTION MANIFOLD – The lower intake manifold housing that receives incoming process fluid and channels it evenly through the bottom check valves into the active pumping chambers.
25-004: SUCTION MANIFOLD – The lower intake manifold housing that receives incoming process fluid and channels it evenly through the bottom check valves into the active pumping chambers.
Key Features
- Primary intake manifold component engineered to distribute incoming liquid streams to chambers.
- Optimizes internal pressure parameters to maximize vacuum priming and overall suction lift pull.
- Rigid base design mounts firmly to the pump frame to prevent operational vibration loosening.
- Sealed interior tracking lines block atmospheric air from creeping into the fluid pipeline feed.
- Durable construction prevents wetted walls from rapid pitting when handling abrasive mixtures.
Technical Specifications
| Manufacturer / Brand | Blagdon Pump |
| Component Classification | Lower Fluid Intake Distribution Manifold |
| Pump Fitment Compatibility | 1" Metallic pump liquid distribution lines |
| Primary Material | Ductile Iron / Stainless Steel / Cast Aluminum Alloy |
| Function | Splits the incoming single fluid supply line into left and right check valve suction channels |
| Fluid Path Configuration | High-flow internal orifice geometries to maximize self-priming suction efficiency |
