DIPHRAGM SHAFT-EXB (25-081)
📐 Product Angles & Views
3D View / Front
Left Side
Right Side
Top Side
Product Video
BLAGDON ®

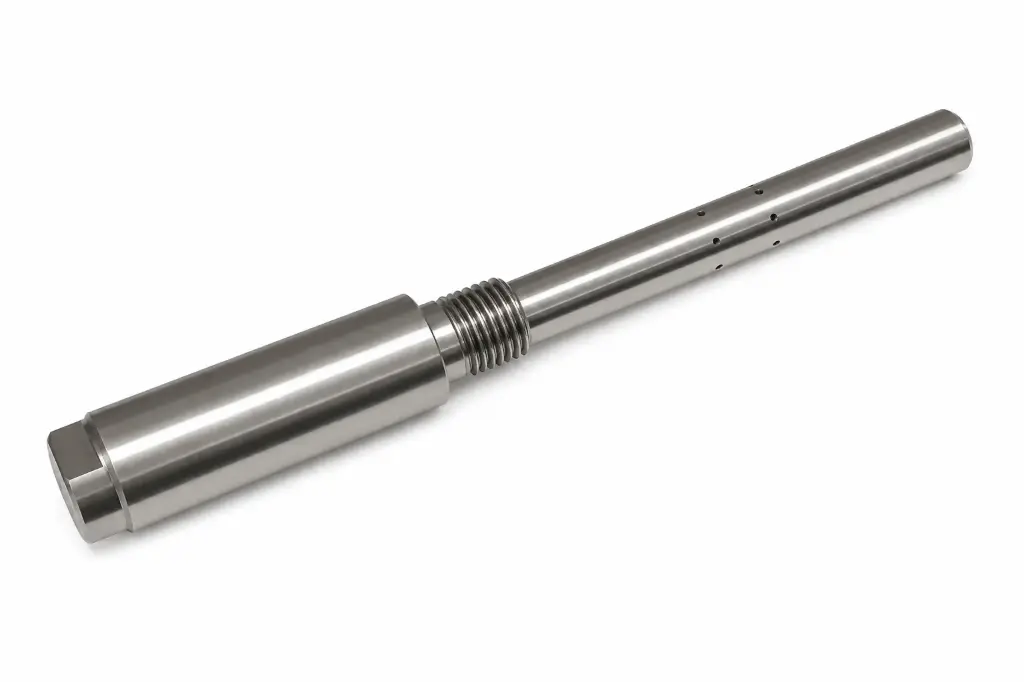

DIPHRAGM SHAFT-EXB (25-081)

Part No: 25-081
★★★★★ New ● In Stock

Pack of 1

https://test.vistarb2b.com/web/image/product.template/2021/image_1920?unique=3b42cc8
Price
Price on Request
Please submit an enquiry to receive a custom quote for this product.
📩 Send Enquiry
In Stock

This combination does not exist.

👁 2938 Customers Visited 🛒 48 Customers Purchased 📦 192 Units Sold
🚚 Ships in 1–2 days
📄 GST Invoice
↩️ Non-returnable
📍 Check Delivery
Contact Us

Share

25-081: DIAPHRAGM SHAFT-EXB (25-081) – The heavy-duty central metallic drive rod that mechanically links the left and right pumping diaphragms together, enabling continuous, alternating suction and discharge strokes.

25-081: DIAPHRAGM SHAFT-EXB (25-081) – The heavy-duty central metallic drive rod that mechanically links the left and right pumping diaphragms together, enabling continuous, alternating suction and discharge strokes.

Key Features
  1. Toughened EXB series connecting shaft designed to transfer reciprocating mechanical force smoothly.
  2. Hardened structural core prevents bending or fatigue fractures under heavy dynamic fluid loading.
  3. Smoothly machined sliding surface minimizes internal friction wear on passing dynamic lip seals.
  4. End-threaded profiles matched precisely for heavy-duty diaphragm inner and outer plate fastening.
  5. Precision-cut length parameters ensure perfect mechanical stroke stroke balance during operations.
Technical Specifications
Manufacturer / BrandBlagdon Pump
Component ClassificationReciprocating Connecting Pilot Core Rod (Note: Typo "DIPHRAGM" specifies "DIAPHRAGM")
Pump Fitment CompatibilityEXB series 1" internal air-motor sections
Primary MaterialHardened Stainless Steel
FunctionMechanically bridges opposing inner plates to transmit synchronized flexing drive forces
Finish ProfilePrecision centerless ground to achieve frictionless sliding through lip seals
