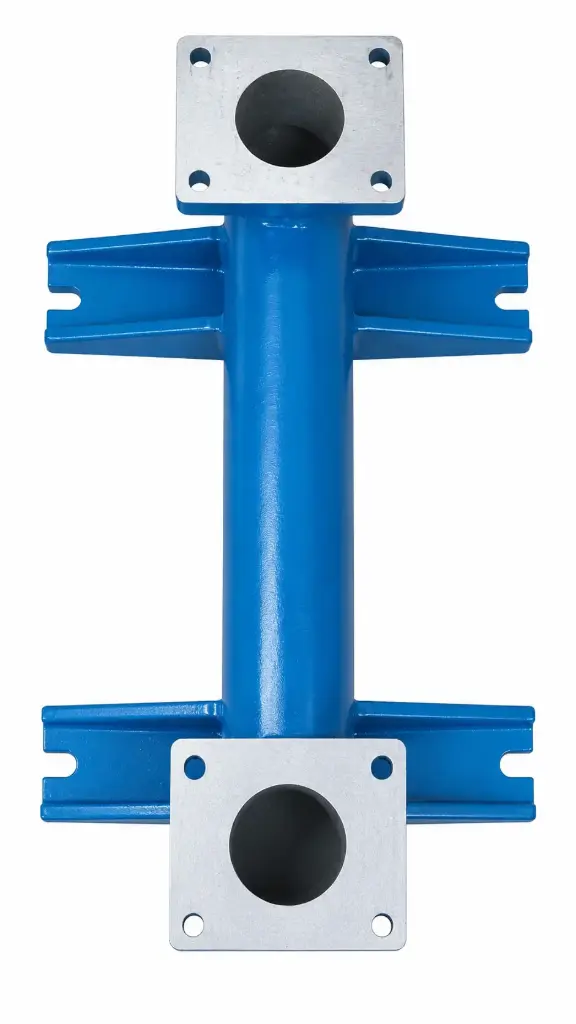

SUCTION MANIFOLD
Part No: 50-254
Pack of 1
50-254: SUCTION MANIFOLD – The lower intake manifold housing that receives incoming process fluid from the pipeline and channels it upward through the bottom check valves into the active pumping chambers.
50-254: SUCTION MANIFOLD – The lower intake manifold housing that receives incoming process fluid from the pipeline and channels it upward through the bottom check valves into the active pumping chambers.
Key Features
- Primary intake manifold component engineered to distribute incoming liquid streams to chambers smoothly.
- Optimizes internal pressure parameters to maximize vacuum priming and overall suction lift pull.
- Rigid base design mounts firmly to the pump frame to prevent operational vibration loosening loops.
- Sealed interior tracking lines block atmospheric air from creeping into the fluid pipeline feed.
- Durable construction prevents wetted walls from rapid pitting when handling abrasive process mixtures.
Technical Specifications
| Manufacturer / Brand | Blagdon Pump |
| Component Classification | Lower Liquid Intake Distribution Manifold |
| Pump Fitment Compatibility | 2" Large-bore metallic utility pump configurations |
| Primary Material | Ductile Iron / Structural Cast Steel / Cast Aluminum Alloy |
| Function | Directs incoming main process fluid supply smoothly into the lower check valve sections |
| Orifice Engineering | Generous fluid path configuration to maximize self-priming suction metrics |
