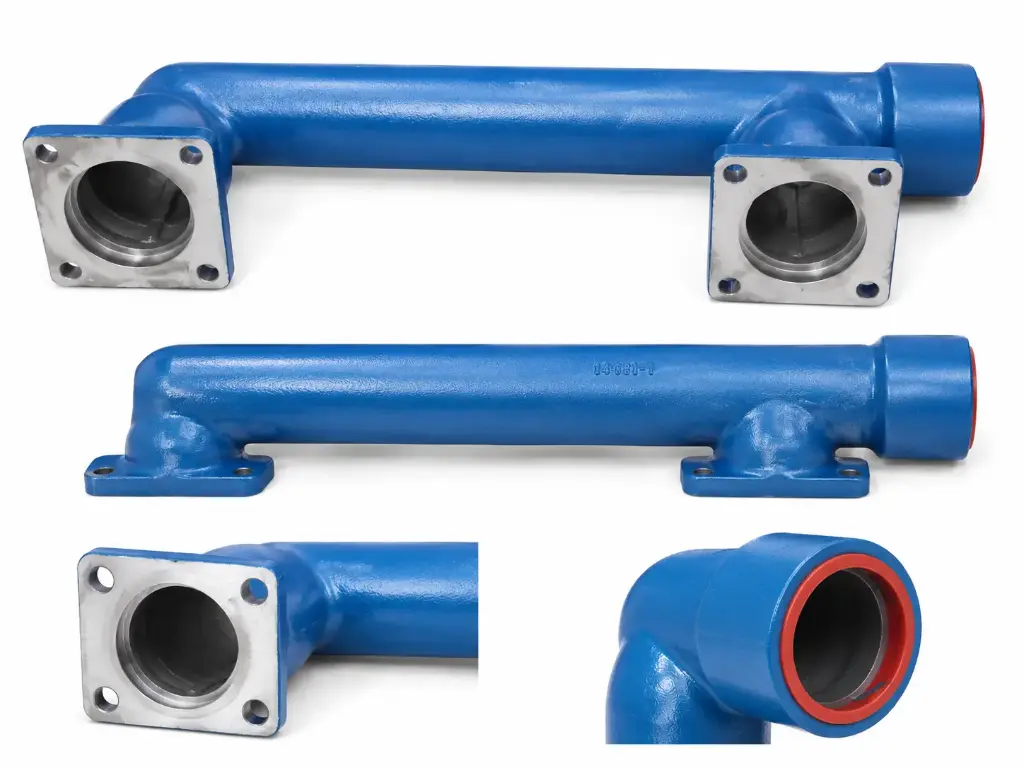

DISCHARGE MANIFOLD - EXB
Part No: 50-255
Pack of 1
50-255: DISCHARGE MANIFOLD - EXB – The upper exhaust manifold casting that collects pressurized process fluid from both liquid chambers and routes it cleanly out of the pump into the discharge piping.
50-255: DISCHARGE MANIFOLD - EXB – The upper exhaust manifold casting that collects pressurized process fluid from both liquid chambers and routes it cleanly out of the pump into the discharge piping.
Key Features
- Specialized EXB fluid collector manifold built to channel exit process streams smoothly.
- Engineered internal pathways minimize flow resistance to maximize pump volumetric output.
- Robust structural walls handle sudden line backpressure spikes and external pipe weight loading.
- Features precision-machined face paths to ensure tight, leak-free seat and check valve seals.
- Heavy-duty material composition resists fluid scoring and erosion from rapid product velocity.
Technical Specifications
| Manufacturer / Brand | Blagdon Pump |
| Component Classification | Upper Fluid Collection Outflow Manifold |
| Pump Fitment Compatibility | EXB-series 2" industrial liquid pump lines |
| Primary Material | Heavy-wall Ductile Iron / 316 Stainless Steel option |
| Function | Unifies the high-velocity pressurized stream from both fluid chambers into a downstream pipe line |
| Max Working Pressure | 125 PSI (8.6 Bar) continuous engineering pressure threshold |
