DISCHARGE MANIFOLD
Part No: 518-146-156
Pack of 1

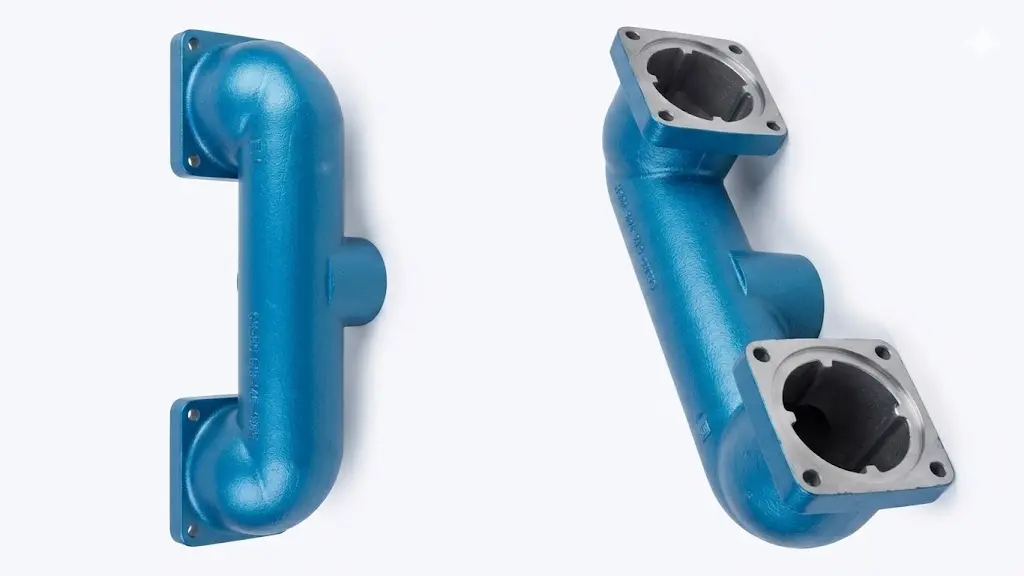

518-146-156: DISCHARGE MANIFOLD – The primary upper collector manifold block that aggregates pressurized process fluid from both pumping chambers and channels it into the external discharge pipe system.
518-146-156: DISCHARGE MANIFOLD – The primary upper collector manifold block that aggregates pressurized process fluid from both pumping chambers and channels it into the external discharge pipe system.
Key Features
- Heavy-walled fluid collector manifold built to channel exit process streams smoothly from wetted zones.
- Engineered internal tracking geometry minimizes flow restrictions to optimize pump volumetric outputs.
- High structural rigidity handles intense dynamic pressures and sudden pipeline backpressure loading surges.
- Features precision-machined face paths to ensure tight, leak-free seat and check valve seals.
- Durable material composition prevents wetted interior walls from rapid pitting or aggressive fluid scoring.
Technical Specifications
| Manufacturer / Brand | Blagdon Pump |
| Component Classification | Upper Fluid Collection Outflow Manifold |
| Pump Fitment Compatibility | Mid-to-large capacity metallic fluid distribution sections |
| Primary Material | Cast Iron / Ductile Iron Casting Alloy |
| Function | Unifies pressurized process fluid exiting the chambers into a singular downstream piping line |
| Max Working Pressure | Withstands high downstream hydraulic pressure loops up to 125 PSI (8.6 Bar) |
