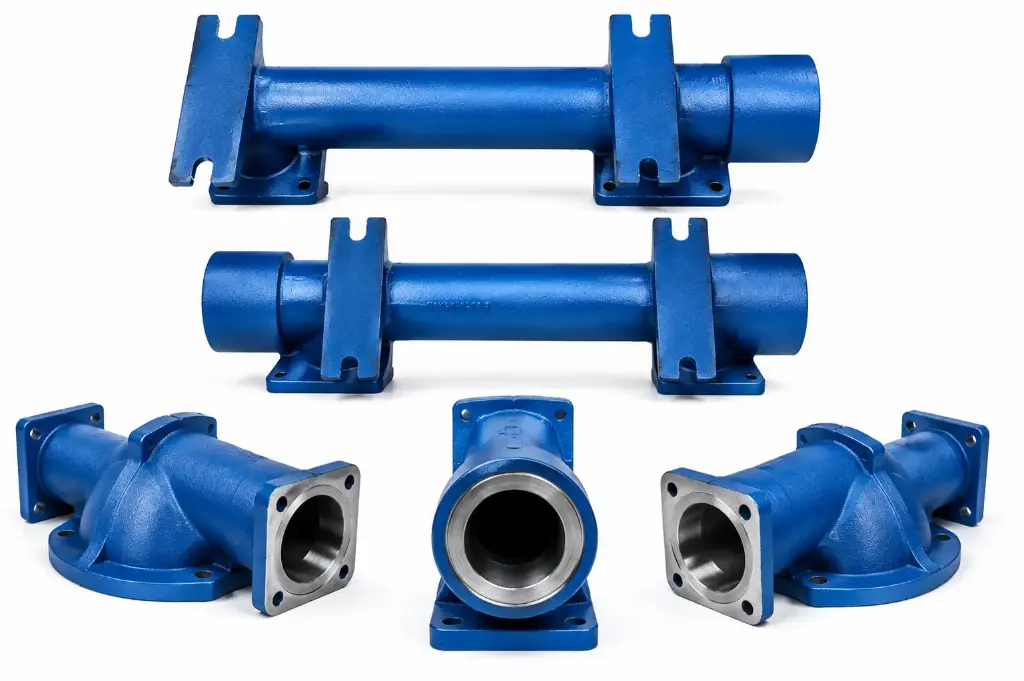

SUCTION MANIFOLD
Part No: B518.155.156 E
Pack of 1
B518-155-156 E: SUCTION MANIFOLD – The primary lower intake manifold casing that receives incoming process fluid from the supply line and routes it evenly through the bottom check valves into the active pumping chambers.
B518-155-156 E: SUCTION MANIFOLD – The primary lower intake manifold casing that receives incoming process fluid from the supply line and routes it evenly through the bottom check valves into the active pumping chambers.
Key Features
- Primary intake manifold component engineered to distribute incoming liquid streams to chambers smoothly.
- Optimizes internal pressure parameters to maximize vacuum priming and overall suction lift pull.
- Rigid base design mounts firmly to the pump frame to prevent operational vibration loosening loops.
- Sealed interior tracking lines block atmospheric air from creeping into the fluid pipeline feed.
- Durable construction prevents wetted walls from rapid pitting when handling abrasive process mixtures.
Technical Specifications
| Manufacturer / Brand | Blagdon Pump |
| Component Classification | Lower Fluid Intake Distribution Manifold (High-Flow Layout) |
| Primary Material | Heavy-duty Epoxy-Coated Ductile Iron / Cast Steel Alloy |
| Function | Splits the incoming single fluid supply line uniformly into left and right check valve intake channels |
| Fluid Path Configuration | High-flow internal orifice geometries to maximize dynamic self-priming suction metrics |
