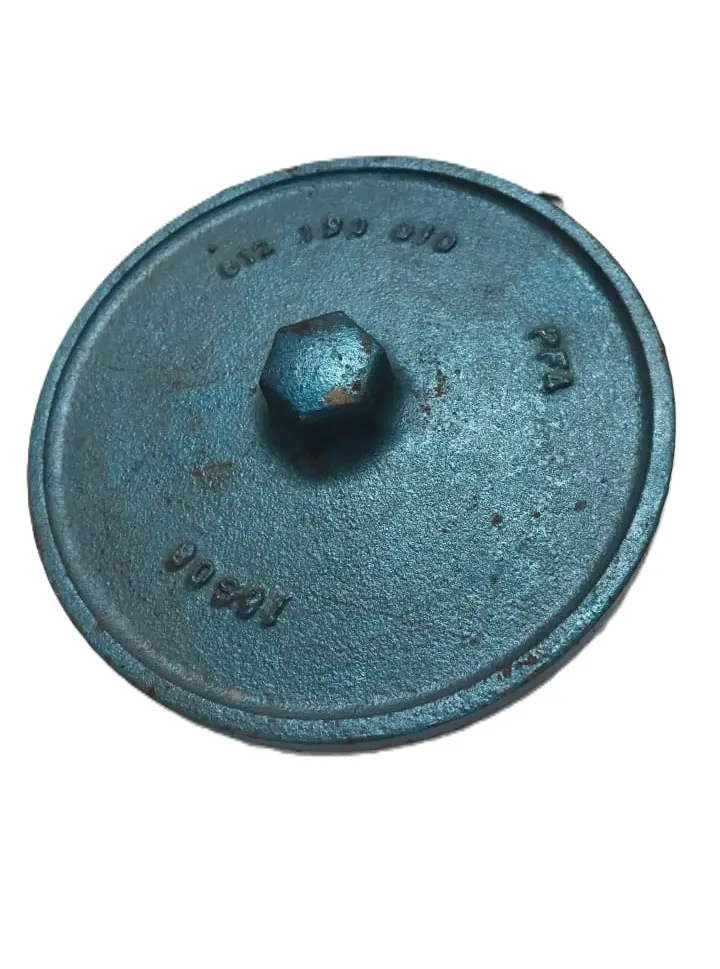

OUTER DIA. PLATE ASSY (B612.193.010)

Part No: B612.193.010
★★★★★ New ● In Stock

Pack of 1

https://test.vistarb2b.com/web/image/product.template/2086/image_1920?unique=3b42cc8
Price
Price on Request
Please submit an enquiry to receive a custom quote for this product.
📩 Send Enquiry
In Stock

This combination does not exist.

👁 3421 Customers Visited 🛒 58 Customers Purchased 📦 232 Units Sold
🚚 Ships in 1–2 days
📄 GST Invoice
↩️ Non-returnable
📍 Check Delivery
Contact Us

Share

B612.193.010: OUTER DIA. PLATE ASSY (B612.193.010) – A complete outer diaphragm clamping plate sub-assembly that fits on the fluid side of the diaphragm, pinning it securely to the central connecting rod.

B612.193.010: OUTER DIA. PLATE ASSY (B612.193.010) – A complete outer diaphragm clamping plate sub-assembly that fits on the fluid side of the diaphragm, pinning it securely to the central connecting rod.

Key Features
  1. Pre-assembled outer diaphragm plate module containing pre-matched clamping components.
  2. Distributes bolt torque loading uniformly to prevent fluid leaks around the pump chamber rim.
  3. High tensile strength metal construction prevents bowing or bending under heavy line pressure.
  4. Protects inner wetted flexible membranes from external mechanical shock and structural impact.
  5. Precision countersunk bolt hole pattern ensures perfect alignment with the main shaft axis.
Technical Specifications
Manufacturer / BrandBlagdon Pump
Component ClassificationFluid-Side Diaphragm Outer Clamping Plate Assembly
Primary MaterialStructural Cast Steel Alloy / Hardened Aluminum
FunctionSandwiches the central radius of the diaphragm against the inner plate to secure it to the shaft rod
Mechanical FitmentPrecision machined flat interface profile to distribute clamping force evenly without pinching
