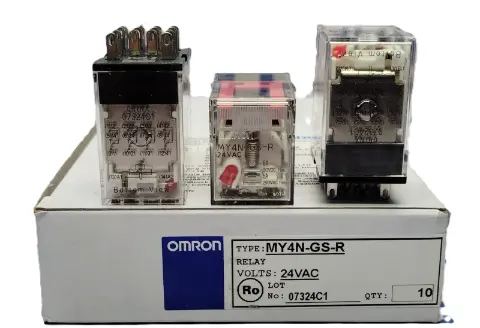

Omron MY2 DPDT General Purpose Relay, 14-pin (MY4N-GS-R AC24)

Part No: MY4 5705B
★★★★★ New ● In Stock

Pack of 10

https://test.vistarb2b.com/web/image/product.template/1645/image_1920?unique=3b42cc8
Price
₹ 4,185.00 ₹ 2790.00
Pack of 10 · (₹ 279.00 / Units)
Quantity
Add to Cart
Buy Now
In Stock

    This combination does not exist.

    👁 5630 Customers Visited 🛒 50 Customers Purchased 📦 450 Units Sold
    🚚 Ships in 1–2 days
    📄 GST Invoice
    ↩️ Non-returnable
    📍 Check Delivery
    Contact Us

    Share

    MY4 5705B: Omron MY2 DPDT General Purpose Relay, 14-pin (MY4N-GS-R AC24) – A high-density Omron 14-pin control relay utilizing a 4PDT (Four-Pole Double-Throw) terminal footprint (listed as MY2 family series). It switches multiple auxiliary lines simultaneously using a 24V AC coil supply.

    MY4 5705B: Omron MY2 DPDT General Purpose Relay, 14-pin (MY4N-GS-R AC24) – A high-density Omron 14-pin control relay utilizing a 4PDT (Four-Pole Double-Throw) terminal footprint (listed as MY2 family series). It switches multiple auxiliary lines simultaneously using a 24V AC coil supply.

    Key Features
    1. Expanded 4PDT (4-Pole Double-Throw) configuration layout multiplying available control signal circuits.
    2. High-density 14-pin plug-in footprint allows multi-line switching paths from a single unified input.
    3. Operational processing parameters track cleanly under an auxiliary AC 24V control network framework.
    4. Rigid mechanical test button layout enables rapid, manual contact closing validation without line power feeds.
    5. Keeps historical timing actions balanced safely through heavy operational vibration harmonics.
    Technical Specifications
    Manufacturer / BrandOmron Corporation
    Component ClassificationMiniature Electromagnetic Power Relay with LED Indicator (Note: Image text notes DPDT, but MY4 configuration specifies 4PDT)
    Control Coil Voltage24 V AC (50/60 Hz)
    Contact Configuration / Pin Count4PDT (Four-Pole Double-Throw) / 14-Pin plug-in terminal base
    Max Switching Current / Voltage3 A at 250 V AC / 3 A at 30 V DC (Resistive load)
    Max Operating Time / Release Time20 ms maximum / 20 ms maximum
    Safety Compliance StandardsUL 508, CSA C22.2, VDE, CE Mark compliant
