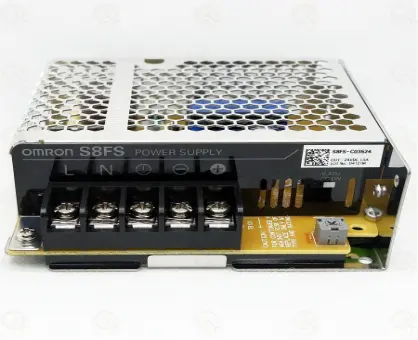

Omron S8FS-C03524 24 V 35 W SMPS
Part No: S8FS0012E
Pack of 1
S8FS0012E: Omron S8FS-C03524 24 V 35 W SMPS – A compact Omron switch-mode power supply (SMPS). It safely down-converts input line voltage into a highly stable 24V DC output at a 35-Watt capacity to feed automation sensors and control switches.
S8FS0012E: Omron S8FS-C03524 24 V 35 W SMPS – A compact Omron switch-mode power supply (SMPS). It safely down-converts input line voltage into a highly stable 24V DC output at a 35-Watt capacity to feed automation sensors and control switches.
Key Features
- Highly efficient Switched-Mode Power Supply (SMPS) delivering a stable 24 VDC output at a 35 W power rating.
- Compact, slim-line metallic enclosure design optimizes panel rail layout space inside automated digital logic cabinets.
- Advanced built-in protection circuitry safeguards downstream electronics against short circuits, overloads, and overvoltage.
- Integrated convection cooling channels allow continuous operation across standard factory temperatures without a fan.
- Heavy-duty screw terminal blocks provide vibration-proof, low-resistance electrical wire fastening points.
Technical Specifications
| Manufacturer / Brand | Omron Corporation |
| Component Classification | Compact Enclosed Switch-Mode Power Supply (Standard Base) |
| Output Rating & Power | 24 V DC / 1.5 A (35 Watts continuous power limit) |
| Input Voltage Range | 100 to 240 V AC (85 to 264 V AC allowable range), 50/60 Hz |
| Overload / Overvoltage Protection | 105% to 160% of rated load (auto-restart) / 115% to 135% (shut off) |
| Dielectric Strength / Isolation | 3,000 V AC for 1 minute between input terminals and output terminals |
| Safety Compliance Standards | UL 508, CSA C22.2, EN 60950-1, EN 50178, CE Mark |
