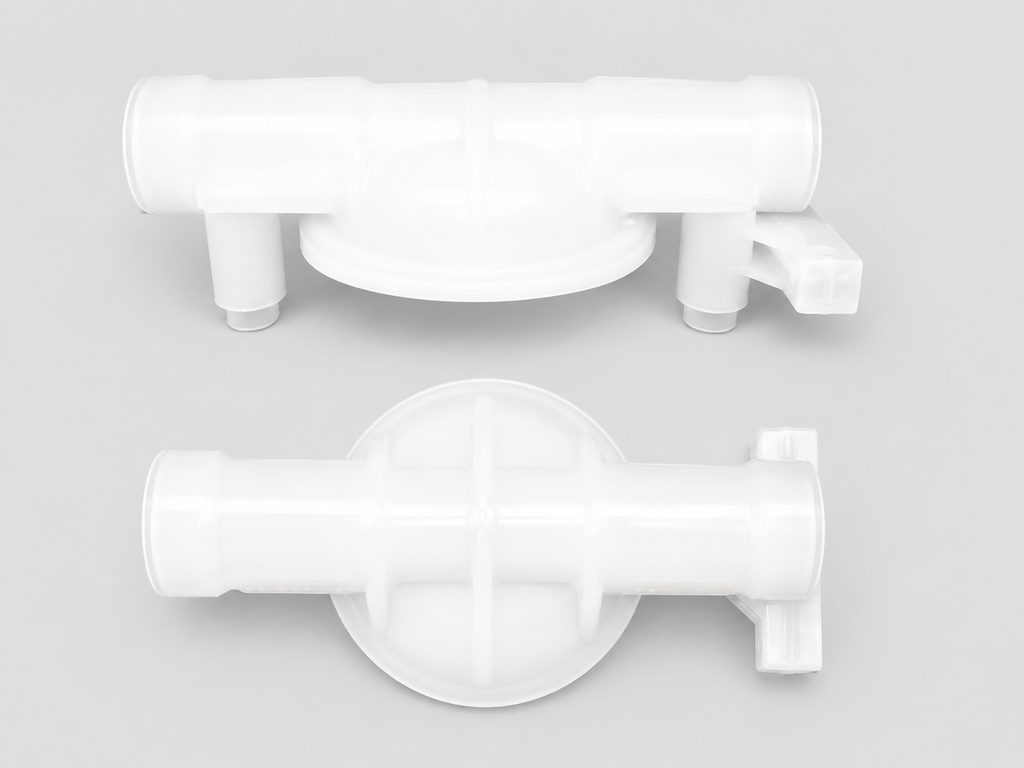

Chamber, Liquid
Part No: V 00-5001-20
Pack of 1
V 00-5001-20: Chamber, Liquid – The primary volumetric fluid end casing chamber housing. It contains the liquid displacement process, enduring cyclic mechanical pressures during each stroke.
V 00-5001-20: Chamber, Liquid – The primary volumetric fluid end casing chamber housing. It contains the liquid displacement process, enduring cyclic mechanical pressures during each stroke.
Key Features
- High-volume internal fluid containment pocket engineered to handle pressurized wetted process media.
- Heavy-walled cast or molded construction resists fatigue stress failures across millions of pump cycles.
- Optimized internal contours minimize liquid turbulence, flow resistance, and cavitation erosion paths.
- Features precision-machined port steps to ensure tight, leak-free seat and manifold interfaces.
- Provides the rigid mechanical boundary required for effective diaphragm fluid displacement loops.
Technical Specifications
| Manufacturer / Brand | Wilden |
| Component Classification | Non-Metallic Fluid Pressure-Retaining Outer Liquid Chamber |
| Primary Material | Injection-Molded Virgin Polypropylene (PP) |
| Function | Forms the main high-pressure outer containment shell wall for process fluids being forcefully displaced |
| Max Working Pressure | 100 PSI (6.9 Bar) maximum temperature-dependent safe liquid load handling limit |
