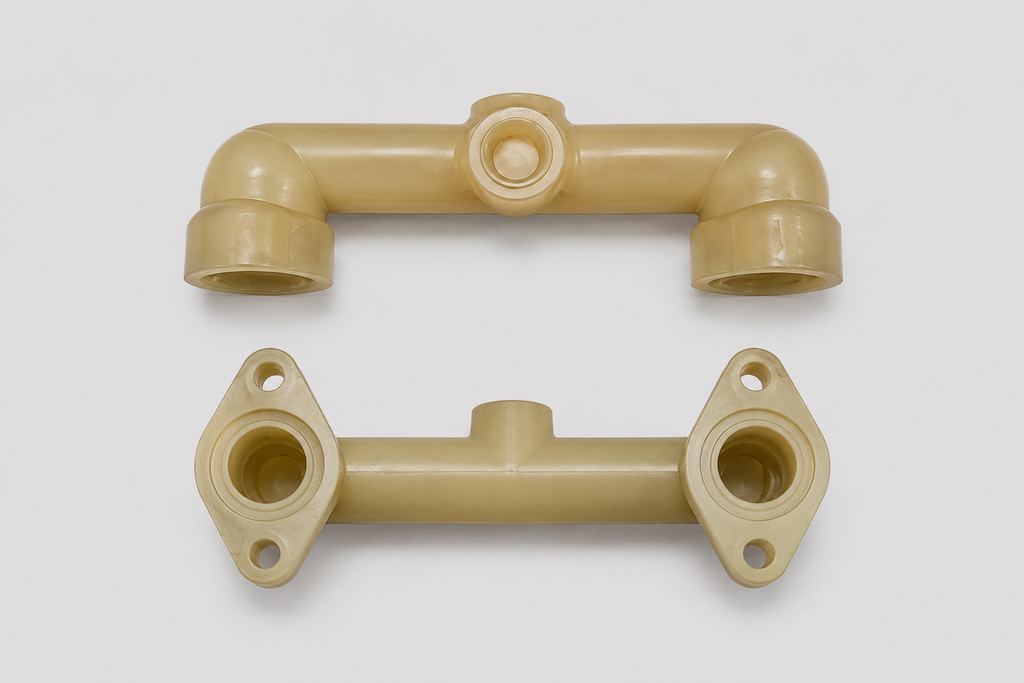

MANIFOLD, DISCHARGE, P25, BSP
Part No: V 00-5036-20
Pack of 1
V 00-5036-20: MANIFOLD, DISCHARGE, P25, BSP – A heavy-duty upper fluid discharge manifold designed for P25 series pumps. It features British Standard Pipe (BSP) threaded connections to collect and route pressurized process fluid into downstream lines.
V 00-5036-20: MANIFOLD, DISCHARGE, P25, BSP – A heavy-duty upper fluid discharge manifold designed for P25 series pumps. It features British Standard Pipe (BSP) threaded connections to collect and route pressurized process fluid into downstream lines.
Key Features
- Specialized P25 fluid collector manifold equipped with standard BSP parallel threaded endpoints.
- Engineered internal pathways optimize product flow transitions to maximize volumetric exit speeds.
- Robust structural walls handle sudden line backpressure spikes and external pipe weight loading strings.
- Features precision-machined face paths to ensure tight, leak-free seat and check valve boundaries.
- Heavy-duty material composition resists fluid scoring and erosion from rapid wetted product velocity.
Technical Specifications
| Manufacturer / Brand | Wilden |
| Component Classification | Upper Fluid Collection Outflow Manifold |
| Pump Fitment Compatibility | Pro-Flo P25 Series non-metallic process pumps |
| Connection Port Sizing | 1/4" BSP (British Standard Pipe) Female Thread inline tracking ports |
| Primary Material | Solid Polypropylene (PP) framework |
| Function | Combines the pressurized liquid streams from both chamber sides into a single discharge piping path |
