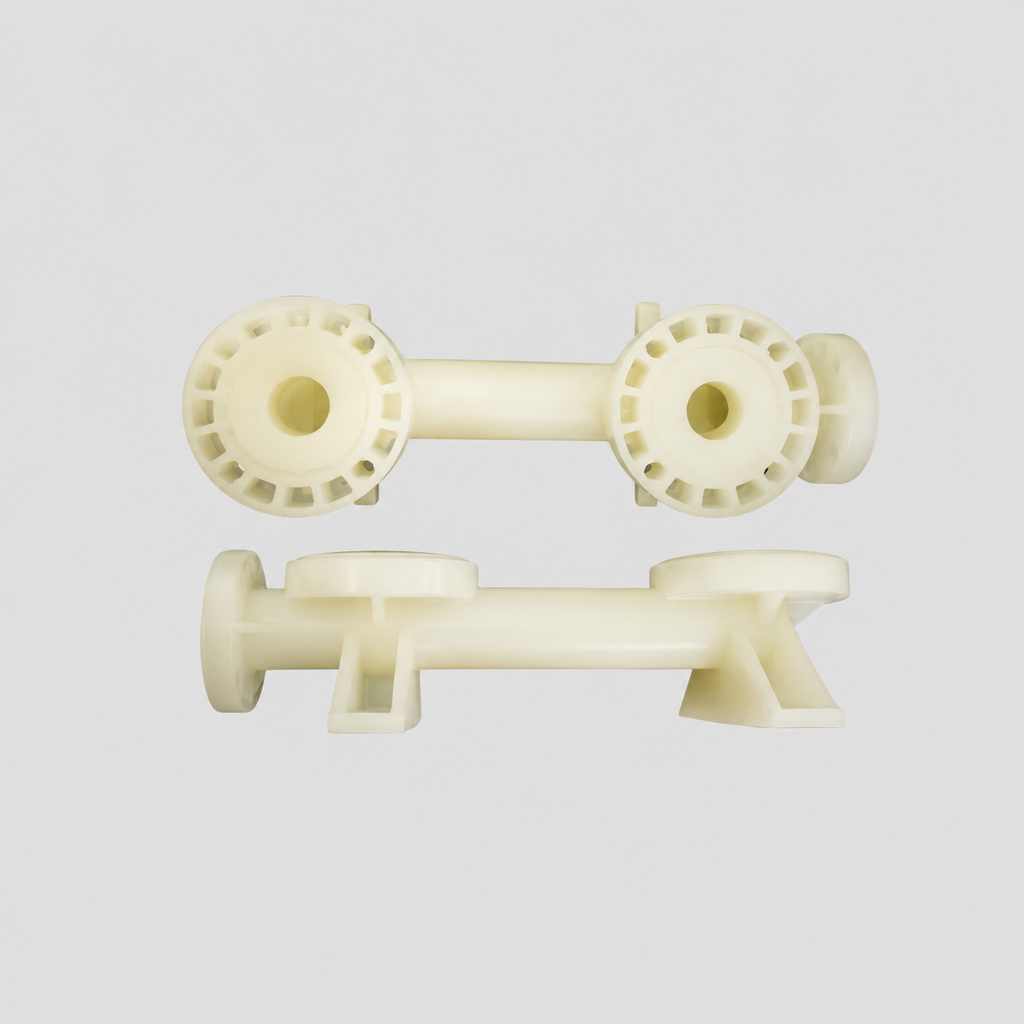

MANIFOLD, INLET, P25, BSP
Part No: V 00-5096-20
Pack of 1
V 00-5096-20: MANIFOLD, INLET, P25, BSP – A lower intake/suction manifold housing with BSP threading, engineered to receive incoming process fluid and channel it smoothly through the check valves into active active pumping chambers.
V 00-5096-20: MANIFOLD, INLET, P25, BSP – A lower intake/suction manifold housing with BSP threading, engineered to receive incoming process fluid and channel it smoothly through the check valves into active active pumping chambers.
Key Features
- Primary intake manifold component engineered to distribute incoming liquid streams to P25 pump chambers.
- Optimizes internal pressure parameters to maximize vacuum priming and overall suction lift pull metrics.
- Heavy reinforced casting wall architecture safely handles continuous heavy pipeline loading strains cleanly.
- Sealed interior tracking lines block atmospheric air from creeping into the fluid pipeline feed track boundaries.
- Direct drop-in configuration eliminates manual modification steps during field preventative system hookups.
Technical Specifications
| Manufacturer / Brand | Wilden |
| Component Classification | Lower Fluid Intake Distribution Manifold |
| Pump Fitment Compatibility | Pro-Flo P25 Series non-metallic process pumps |
| Connection Port Sizing | 1/4" BSP (British Standard Pipe) Female Thread inline tracking ports |
| Primary Material | Solid Polypropylene (PP) framework |
| Fluid Path Configuration | High-flow internal orifice geometries to maximize dynamic self-priming suction metrics |
