WILDEN ®

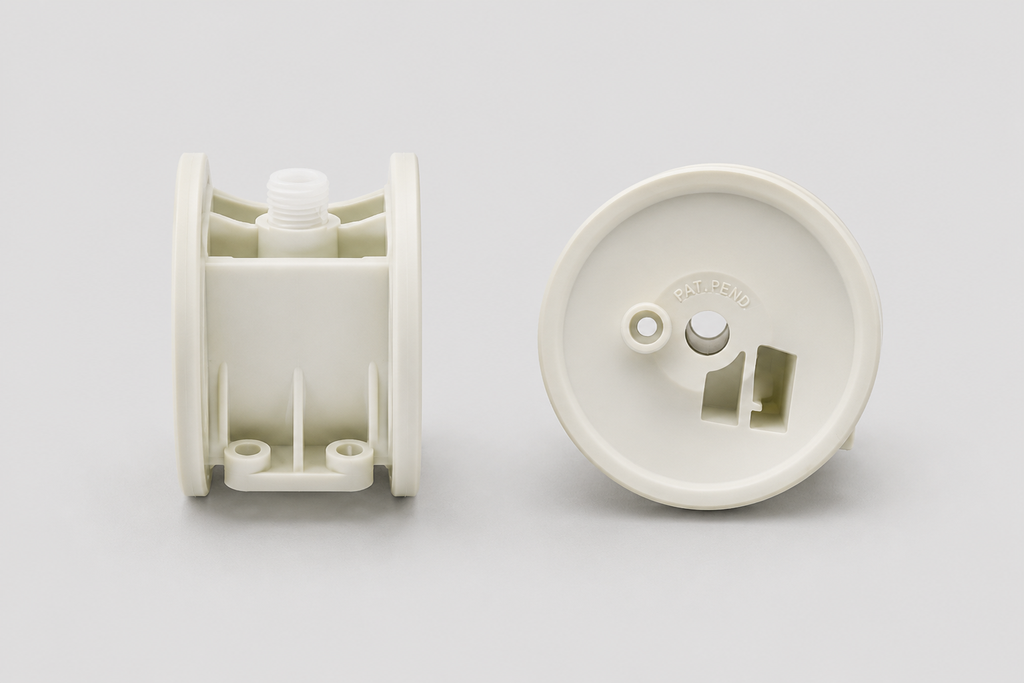

CENTRE SECTION

Part No: V 01-3147-01
★★★★★ New ● Out of Stock

Pack of 1

https://test.vistarb2b.com/web/image/product.template/4429/image_1920?unique=3b42cc8
Price
₹ 26,177.69 ₹ 17451.79
Quantity
Add to Cart
Buy Now

This combination does not exist.

👁 2652 Customers Visited 🛒 41 Customers Purchased 📦 164 Units Sold
🚚 Ships in 1–2 days
📄 GST Invoice
↩️ Non-returnable
📍 Check Delivery
Contact Us

Share

V 01-3147-01: CENTRE SECTION – A rugged replacement structural center section casting engineered to support and guide linear shaft travel under continuous mechanical flexing.

V 01-3147-01: CENTRE SECTION – A rugged replacement structural center section casting engineered to support and guide linear shaft travel under continuous mechanical flexing.

Key Features
  1. Central non-wetted block backbone designed to securely anchor internal pilot and main air motor valves.
  2. Cast structural walls handle rapid, high-pressure cyclic airflow spikes without localized material fatigue.
  3. Precision-machined internal port channels prevent pressure bleeding between shifting air pathways.
  4. Excellent thermal dissipation characteristics manage localized friction heat buildup smoothly.
  5. Rigid structural footprint provides a perfectly stable parallel alignment axis for traveling shafts.
Technical Specifications
Manufacturer / BrandWilden
Component ClassificationMain Pneumatic Center Section Backbone Housing
Primary MaterialHeavy Die-Cast Structural Aluminum Alloy
FunctionServes as the central rigid pressure core housing the reciprocating main shaft and connecting internal air paths
Max Supply Pressure125 PSI (8.6 Bar) pneumatic continuous design rating
