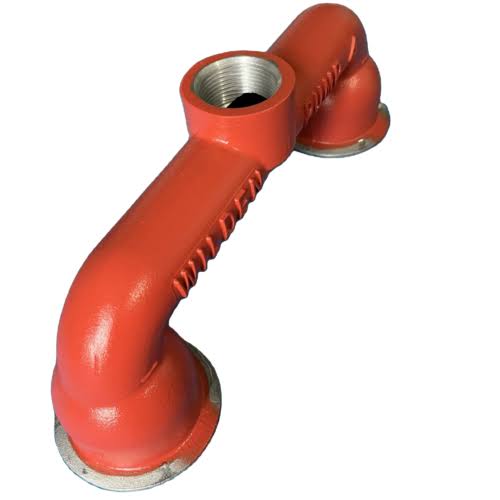

MANIFOLD, DISCH ADV NPT
Part No: V 01-5035-20
Pack of 1
V 01-5035-20: MANIFOLD, DISCH ADV NPT – An Advanced-series upper fluid discharge manifold casting configured with standard National Pipe Thread (NPT) connection links to route pressurized process fluid out of the pump.
V 01-5035-20: MANIFOLD, DISCH ADV NPT – An Advanced-series upper fluid discharge manifold casting configured with standard National Pipe Thread (NPT) connection links to route pressurized process fluid out of the pump.
Key Features
- Advanced (ADV) fluid collector manifold equipped with standard tapered NPT connection ports.
- Engineered internal pathways optimize product fluid transitions to maximize exit flow velocities.
- Robust structural walls handle sudden line backpressure spikes and external pipe weight loading strains.
- Features precision-machined face paths to ensure tight, completely leak-free check valve boundary seals.
- Heavy-duty material composition resists fluid scoring and erosion from rapid wetted product streams.
Technical Specifications
| Manufacturer / Brand | Wilden |
| Component Classification | Upper Advanced Series Fluid Collection Discharge Manifold |
| Connection Port Sizing | NPT (National Pipe Thread) Female Thread standard interface profiles |
| Primary Material | Solid Virgin Polypropylene (PP) |
| Function | Unifies pressurized process fluid streams from both chamber sides into a single outflow path |
| Operating Temperature | 32°F to 150°F (0°C to 66°C) (Do not freeze) |
