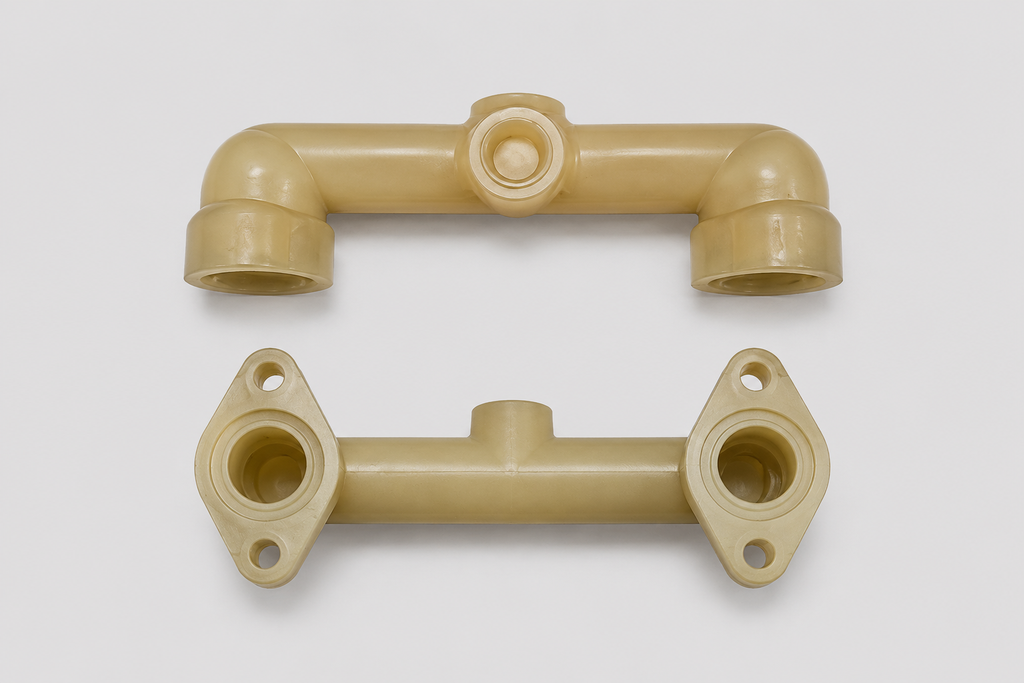

MANIFOLD, DISCH ADV BSPT
Part No: V 01-5036-20
Pack of 1
V 01-5036-20: MANIFOLD, DISCH ADV BSPT – A premium Advanced-series upper discharge manifold featuring British Standard Pipe Taper (BSPT) threads to ensure a leak-tight connection to rigid downstream pipelines.
V 01-5036-20: MANIFOLD, DISCH ADV BSPT – A premium Advanced-series upper discharge manifold featuring British Standard Pipe Taper (BSPT) threads to ensure a leak-tight connection to rigid downstream pipelines.
Key Features
- Advanced wetted exit manifold configuration utilizing standard British Standard Pipe Taper (BSPT) threads.
- Micro-polished internal bore tracks lower liquid fluid turbulence to secure maximum transfer efficiency indices.
- Sealed interior pathways prevent dangerous process chemical mediums or vapors from escaping out past joints.
- High tensile framing structure blocks the manifold connection block from shifting under intense physical strains.
- Simplifies modular integration into parallel process systems using standard metric flanged or threaded hookups.
Technical Specifications
| Manufacturer / Brand | Wilden |
| Component Classification | Advanced Series Fluid Collection Discharge Manifold |
| Connection Port Sizing | BSPT (British Standard Pipe Taper) Female Thread inline tracking ports |
| Primary Material | Solid Virgin Polypropylene (PP) |
| Function | Integrates seamlessly with international standard tapered piping connection matrices |
Product Documents
0
No documents available for this product.
