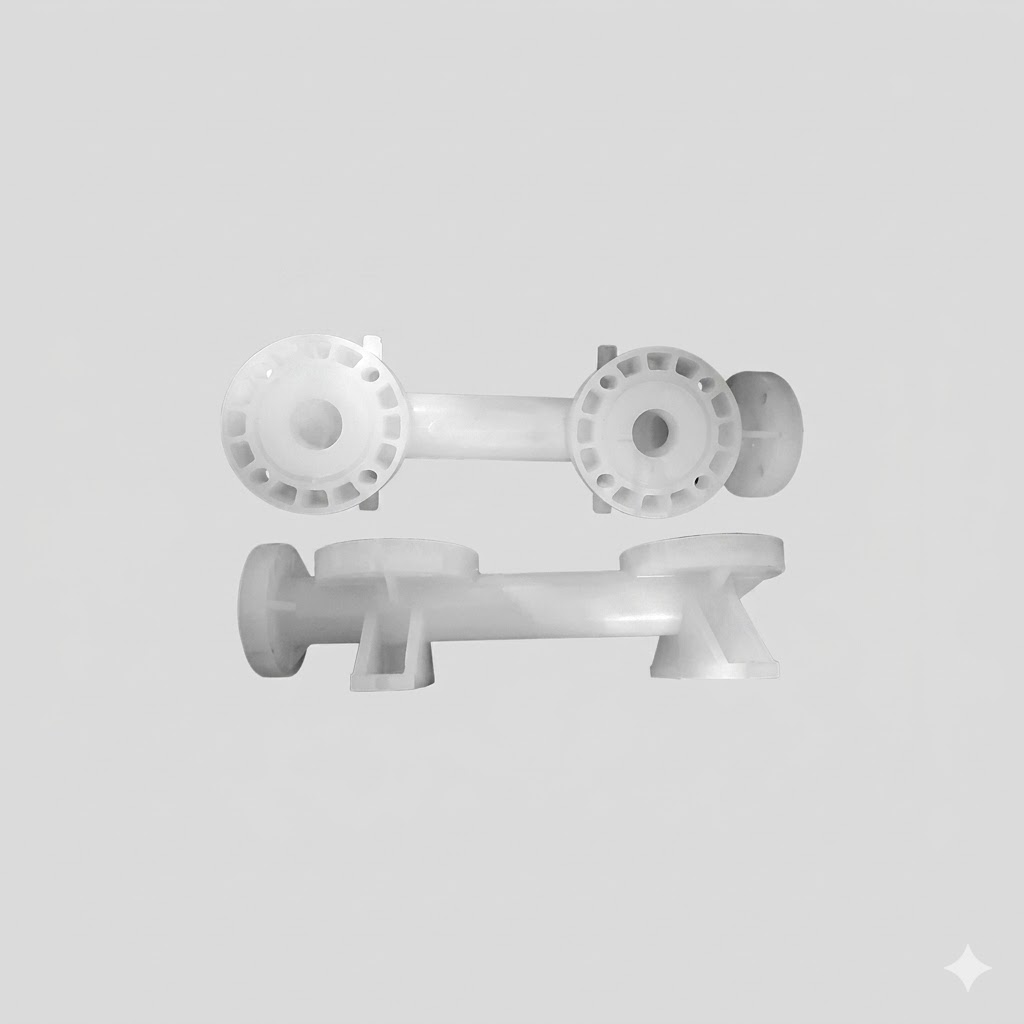

MANIFOLD, INLET ADV NPT
Part No: V 01-5095-20
Pack of 1
V 01-5095-20: MANIFOLD, INLET ADV NPT – An Advanced-series lower suction inlet manifold with NPT threading, engineered to receive incoming process fluid and channel it cleanly through the bottom check valves.
V 01-5095-20: MANIFOLD, INLET ADV NPT – An Advanced-series lower suction inlet manifold with NPT threading, engineered to receive incoming process fluid and channel it cleanly through the bottom check valves.
Key Features
- Primary advanced intake manifold component engineered to distribute incoming liquid streams to chambers.
- Optimizes internal pressure parameters to maximize vacuum priming and overall self-priming suction lift pull.
- Rigid base design mounts firmly to the pump frame to prevent operational vibration loosening loops during runs.
- Sealed interior wetted channels block atmospheric air infiltration from creeping into the fluid pipeline feed.
- Durable construction prevents wetted walls from rapid pitting when handling abrasive or gritty chemical mixtures.
Technical Specifications
| Manufacturer / Brand | Wilden |
| Component Classification | Lower Advanced Series Fluid Intake Distribution Manifold |
| Connection Port Sizing | NPT (National Pipe Thread) Female Thread standard interface profiles |
| Primary Material | Solid Virgin Polypropylene (PP) |
| Fluid Path Configuration | High-flow internal layout optimized to maximize dynamic self-priming suction lift metrics |
