Elbow, Discharge Manifold
Part No: V 01-5230-01
Pack of 1

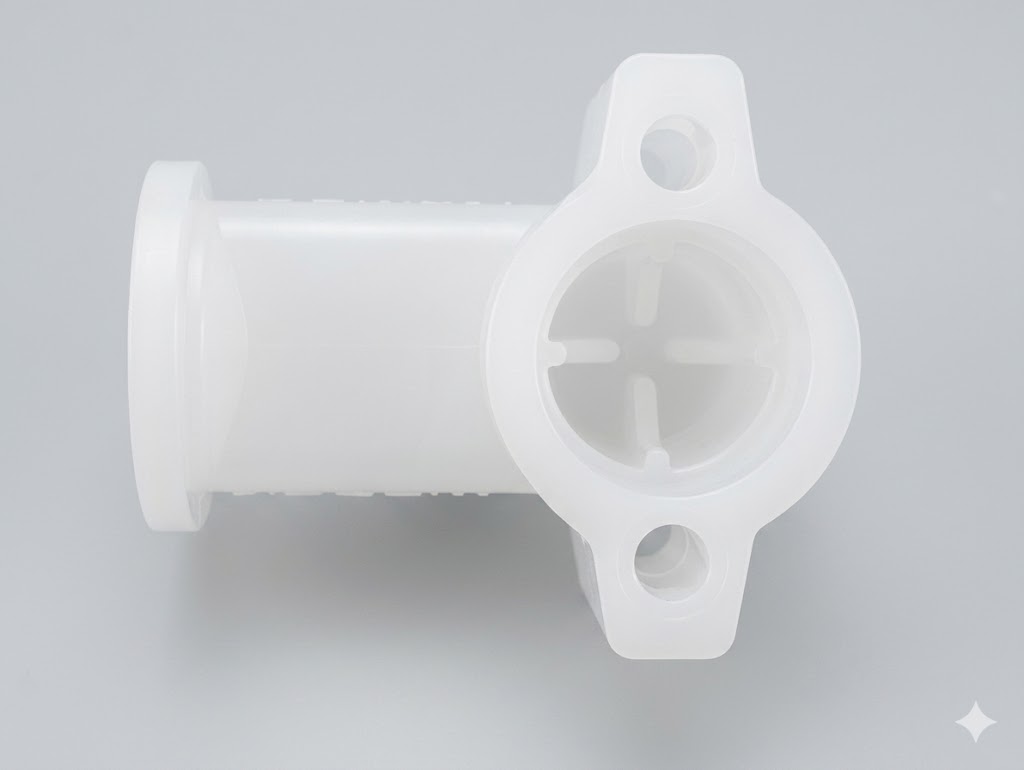

V 01-5310-01: Elbow, Discharge Manifold – A 90-degree fluid discharge elbow fitting that connects to the upper manifold, routing pressurized process fluid smoothly into right-angle downstream pipeline configurations.
V 01-5310-01: Elbow, Discharge Manifold – A 90-degree fluid discharge elbow fitting that connects to the upper manifold, routing pressurized process fluid smoothly into right-angle downstream pipeline configurations.
Key Features
- Heavy-duty 90-degree exit elbow component designed to channel output process streams cleanly away from chambers.
- Handles high exit flow velocities and abrupt pressure surges without localized structural material fatigue leaks.
- High tensile strength metal construction prevents bowing, bending, or flexing during unexpected pipeline shocks.
- Pre-drilled bolt templates match original equipment manifolds perfectly to distribute clamping torque loads uniformly.
- Shields delicate surrounding moving pump valve components from experiencing physical alignment distortions loops.
Technical Specifications
| Manufacturer / Brand | Wilden |
| Component Classification | Metallic 90-Degree Fluid Discharge Manifold Elbow |
| Primary Material | Heavy Die-Cast Structural Aluminum Alloy |
| Function | Directs dynamic pressurized fluid from the chambers upward into the central outflow lines |
