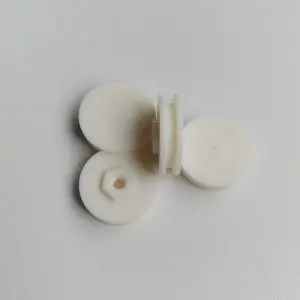

END CAP W/O GUIDE, T2, REVISED
Part No: V 02-2331-23
Pack of 1
V 02-2331-23: END CAP W/O GUIDE, T2, REVISED – An updated, blind structural terminal enclosure cap designed to create an air-tight, secure pressure seal on the opposite end of a revised T2-series air valve block.
V 02-2331-23: END CAP W/O GUIDE, T2, REVISED – An updated, blind structural terminal enclosure cap designed to create an air-tight, secure pressure seal on the opposite end of a revised T2-series air valve block.
Key Features
- Revised T2 series enclosure cap constructed without an internal guide track (W/O GUIDE).
- Heavy-walled industrial build resists mechanical cracking from sudden pipeline pressure surges.
- Precision-cut internal sealing lips prevent static fluids or pressurized driving air from escaping past limits.
- Serves as a rigid end shield protecting delicate moving internal pilot spools from factory floor knocks.
- Standardized structural footprint matches original equipment manifold contours perfectly to eliminate trimming.
Technical Specifications
| Manufacturer / Brand | Wilden |
| Component Classification | Standard Pneumatic Distribution Cylinder End Closure Cap (Revised Pattern) |
| Pump Fitment Compatibility | Turbo-Flo T2 Series robust 1-inch air motor valve chest boundaries |
| Mechanical Fitment | Precision flat-mating sealing rim optimized for high continuous cycle torque changes |
