  3. PISTON, OUTER, (PTFE)AODD PUMP PARTS (V 02-4600-03)
INR

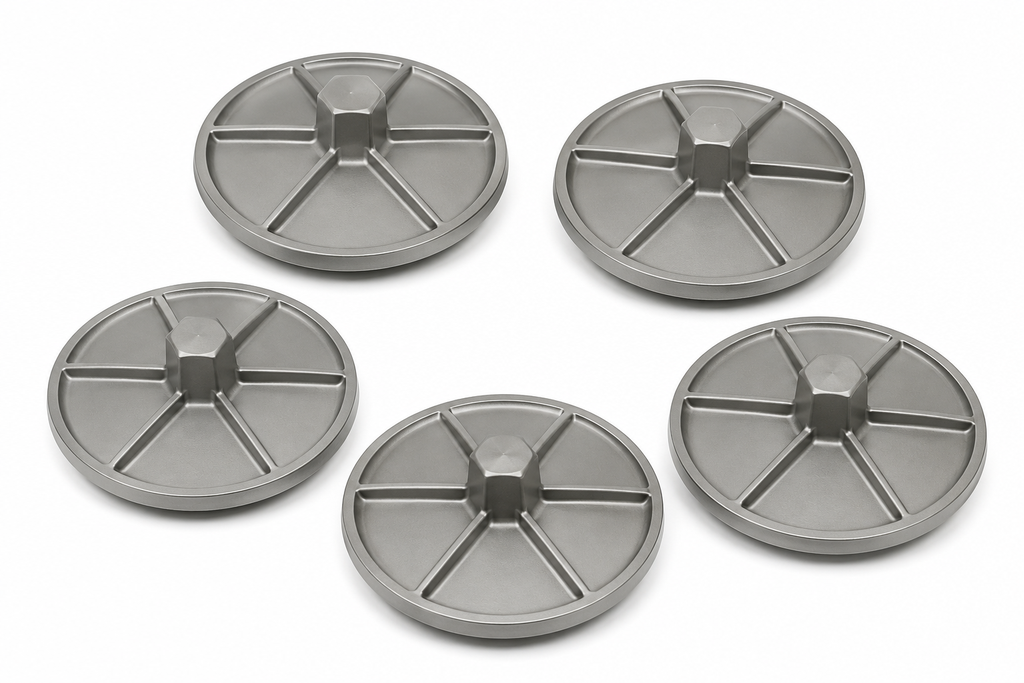

PISTON, OUTER, (PTFE)AODD PUMP PARTS
📐 Product Angles & Views
3D View / Front
Left Side
Right Side
Top Side
Product Video
WILDEN ®

PISTON, OUTER, (PTFE)AODD PUMP PARTS

Part No: V 02-4600-03
★★★★★ New ● Out of Stock

Pack of 1

https://test.vistarb2b.com/web/image/product.template/4465/image_1920?unique=3b42cc8
Price
₹ 7,001.28 ₹ 4667.52
Quantity
Add to Cart
Buy Now

This combination does not exist.

👁 4032 Customers Visited 🛒 55 Customers Purchased 📦 220 Units Sold
🚚 Ships in 1–2 days
📄 GST Invoice
↩️ Non-returnable
📍 Check Delivery
Contact Us

Share

V 02-4600-03: PISTON, OUTER, (PTFE)AODD PUMP PARTS – A dedicated outer liquid-side clamping disk engineered specifically to safely secure thin, rigid Teflon (PTFE) diaphragms inside air-operated double-diaphragm pumps.

V 02-4600-03: PISTON, OUTER, (PTFE)AODD PUMP PARTS – A dedicated outer liquid-side clamping disk engineered specifically to safely secure thin, rigid Teflon (PTFE) diaphragms inside air-operated double-diaphragm pumps.

Key Features
  1. Rigid structural hardware retainer designed specifically to securely clamp PTFE wetted double diaphragms.
  2. Contoured smooth radius edges eliminate sharp pinch points to maximize fluoropolymer flexible lifecycle hours.
  3. High tensile strength framing blocks the inner diaphragm from turning inside out during intake vacuum loops.
  4. Precision counter-bored center template ensures concentric locking with the traveling reciprocating drive shaft.
  5. Durable composition handles intense wetted chemical media and aggressive solvent vapor exposure cleanly.
Technical Specifications
Manufacturer / BrandWilden
Component ClassificationPremium Metallic Fluid-Side Diaphragm Outer Clamping Plate
Pump Fitment Compatibility1-inch chemical-duty PTFE (Teflon face overlay) Air-Operated Double Diaphragm pumps
Primary Material316 Stainless Steel (SS)
FunctionCustom thin-nested profile engineered to clamp rigid fluoropolymer diaphragms without stress points
