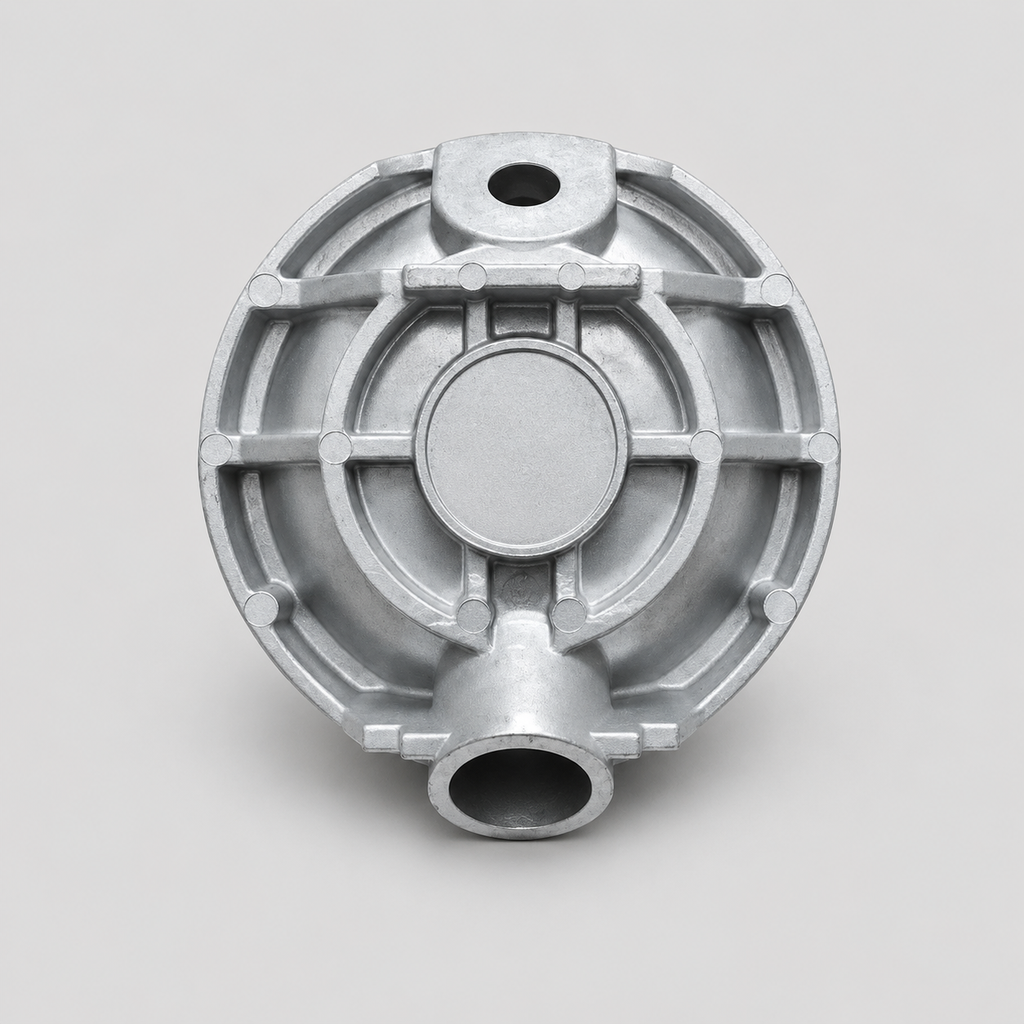

Chamber, Liquid
Part No: V 02-5000-01
Pack of 1
V 02-5000-01: Chamber, Liquid – The primary volumetric fluid end casing chamber housing. It contains the liquid displacement process, enduring cyclic mechanical pressures during each stroke.
V 02-5000-01: Chamber, Liquid – The primary volumetric fluid end casing chamber housing. It contains the liquid displacement process, enduring cyclic mechanical pressures during each stroke.
Key Features
- High-volume internal fluid containment pocket engineered to handle pressurized wetted process media.
- Heavy-walled cast or molded construction resists fatigue stress failures across millions of pump cycles.
- Optimized internal contours minimize liquid turbulence, flow resistance, and cavitation erosion paths.
- Features precision-machined port steps to ensure tight, leak-free seat and manifold interfaces.
- Provides the rigid mechanical boundary required for effective diaphragm fluid displacement loops.
Technical Specifications
| Manufacturer / Brand | Wilden |
| Component Classification | Metallic Pressure-Retaining Outer Liquid Chamber Cover |
| Primary Material | Heavy Die-Cast Structural Aluminum Alloy |
| Function | Forms the main high-pressure outer containment wall for the fluid being pumped |
| Max Working Pressure | 125 PSI (8.6 Bar) continuous engineering pressure threshold |
