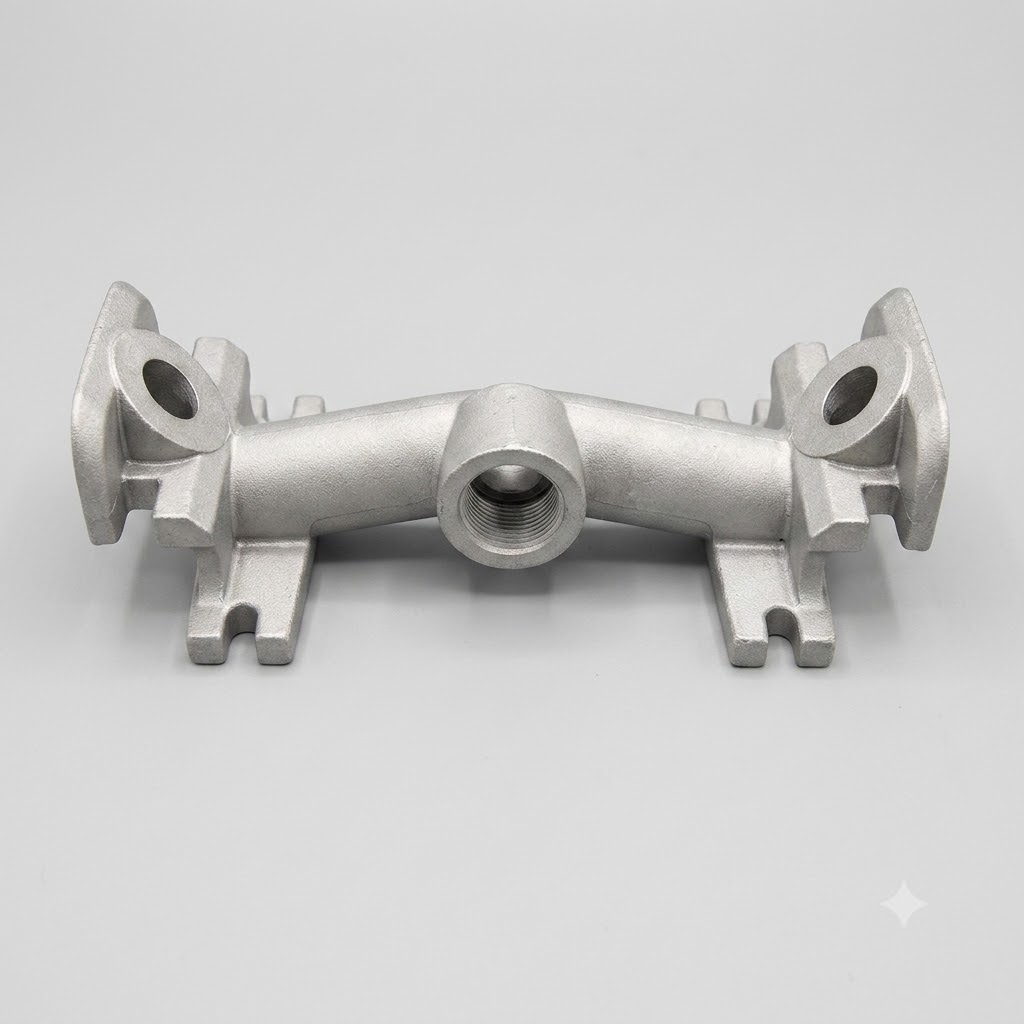

MANIFOLD, INLET
Part No: V 02-5080-01
Pack of 1
V 02-5080-01: MANIFOLD, INLET – The main lower intake manifold housing that receives incoming process fluid from the main supply line and channels it evenly through the lower check valves into active pumping zones.
V 02-5080-01: MANIFOLD, INLET – The main lower intake manifold housing that receives incoming process fluid from the main supply line and channels it evenly through the lower check valves into active pumping zones.
Key Features
- Primary intake manifold component engineered to distribute incoming liquid streams to pump chambers cleanly.
- Optimizes internal pressure parameters to maximize vacuum priming and overall suction lift pull.
- Rigid base design mounts firmly to the pump frame to prevent operational vibration loosening loops.
- Pre-drilled bolt templates match original equipment fluid caps perfectly to distribute torque loads uniformly.
- Durable construction prevents wetted walls from rapid pitting when handling abrasive mixtures.
Technical Specifications
| Manufacturer / Brand | Wilden |
| Component Classification | Lower Fluid Intake Distribution Manifold |
| Primary Material | Heavy Die-Cast Structural Aluminum Alloy |
| Function | Splits the incoming single fluid supply line uniformly into left and right check valve intake channels |
| Max Working Pressure | 125 PSI (8.6 Bar) continuous engineering pressure threshold |
