DIAPHRAGM, PRIMARY, SIPD
📐 Product Angles & Views
3D View / Front
Left Side
Right Side
Top Side
Product Video
WILDEN ®

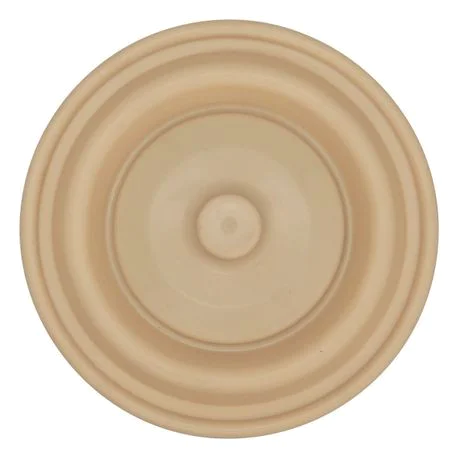

DIAPHRAGM, PRIMARY, SIPD

Part No: V 04-1031-57
★★★★★ New ● Out of Stock

Pack of 1

https://test.vistarb2b.com/web/image/product.template/4717/image_1920?unique=3b42cc8
Price
₹ 15,764.39 ₹ 10509.59
Quantity
Add to Cart
Buy Now

This combination does not exist.

👁 2938 Customers Visited 🛒 48 Customers Purchased 📦 192 Units Sold
🚚 Ships in 1–2 days
📄 GST Invoice
↩️ Non-returnable
📍 Check Delivery
Contact Us

Share

V 04-1031-57: DIAPHRAGM, PRIMARY, SIPD – An advanced Single-Piece Integrated Design (SIPD) primary diaphragm sheet. It embeds the central metallic support plate fully inside the elastomer matrix, eliminating external fluid leak paths and product entrapment zones.

V 04-1031-57: DIAPHRAGM, PRIMARY, SIPD – An advanced Single-Piece Integrated Design (SIPD) primary diaphragm sheet. It embeds the central metallic support plate fully inside the elastomer matrix, eliminating external fluid leak paths and product entrapment zones.

Key Features
  1. Specialized Single-Piece Integral Piston Diaphragm (SIPD) design to eliminate separate outer plate leak paths.
  2. Smooth, continuous wetted face profile prevents product crystallization buildup and minimizes flow turbulence fields.
  3. Precision engineered center core distributes reciprocating drive force smoothly across the full flexible profile.
  4. Tough elastomeric material structure provides high resistance to dynamic wear and pipeline micro-abrasion paths.
  5. Speeds up field maintenance overhauls by simplifying hardware matching steps during component changes on the floor.
Technical Specifications
Manufacturer / BrandWilden
Component ClassificationSIPD (Separated Integral Piston Diaphragm)
Structural LayoutOne-Piece Integral Piston Face (Completely buries the inner piston plate metal work)
FunctionEliminates the common outer piston leak path, avoiding severe chemical fluid breakdown risks
Primary ApplicationsHazardous, highly toxic, or ultra-expensive chemical dosing loops where zero bypass is mandatory
