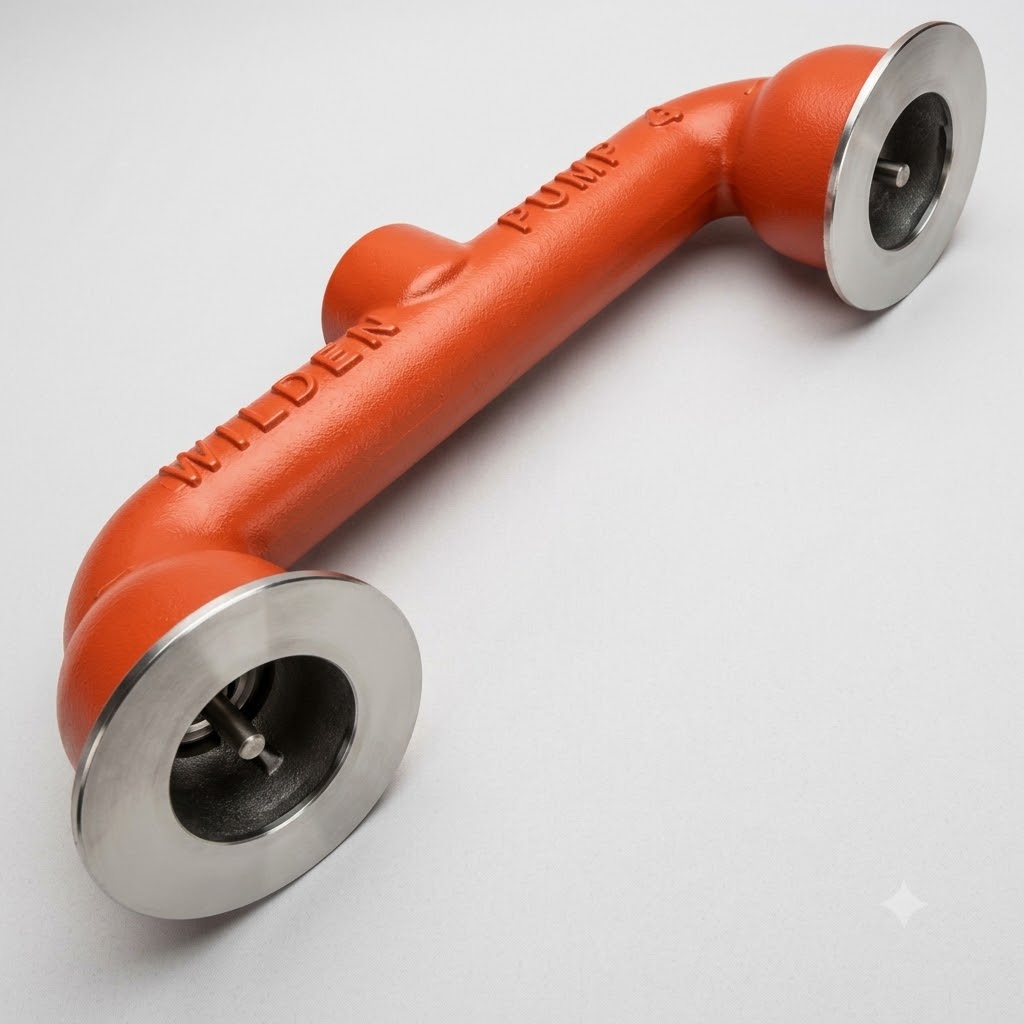

Manifold, Discharge, Bspt
Part No: V 04-5020-01-14
Pack of 1
V 04-5020-01-14: Manifold, Discharge, Bspt – An upper discharge collector manifold configured with British Standard Pipe Taper (BSPT) threads to ensure a leak-tight, high-pressure bond with matching facility plumbing lines.
V 04-5020-01-14: Manifold, Discharge, Bspt – An upper discharge collector manifold configured with British Standard Pipe Taper (BSPT) threads to ensure a leak-tight, high-pressure bond with matching facility plumbing lines.
Key Features
- High-capacity fluid collector manifold equipped with standard tapered BSPT threaded branch connections.
- Engineered internal pathways optimize product fluid transitions to maximize exit flow velocities streams.
- Strict metric sizing standards create a completely leak-free inline piping interface against matching pipe headers.
- Tough cast metallic matrix resists continuous pipeline pressure shocks and hydraulic vibration cycles safely.
- Direct drop-in configuration eliminates manual modification steps during field preventative system hookups.
Technical Specifications
| Component Name | Manifold, Discharge, Bspt |
| Manufacturer / Brand | Wilden |
| Component Classification | Threaded Upper Fluid Collection Outflow Manifold |
| Connection Port Sizing | 1.5" BSPT (British Standard Pipe Taper) Female Thread connection layout |
| Primary Material | Heavy Die-Cast Structural Aluminum Alloy |
| Function | Integrates seamlessly with international standard tapered piping connection matrices |
