Manifold, Discharge
Part No: V 04-5020-01
Pack of 1

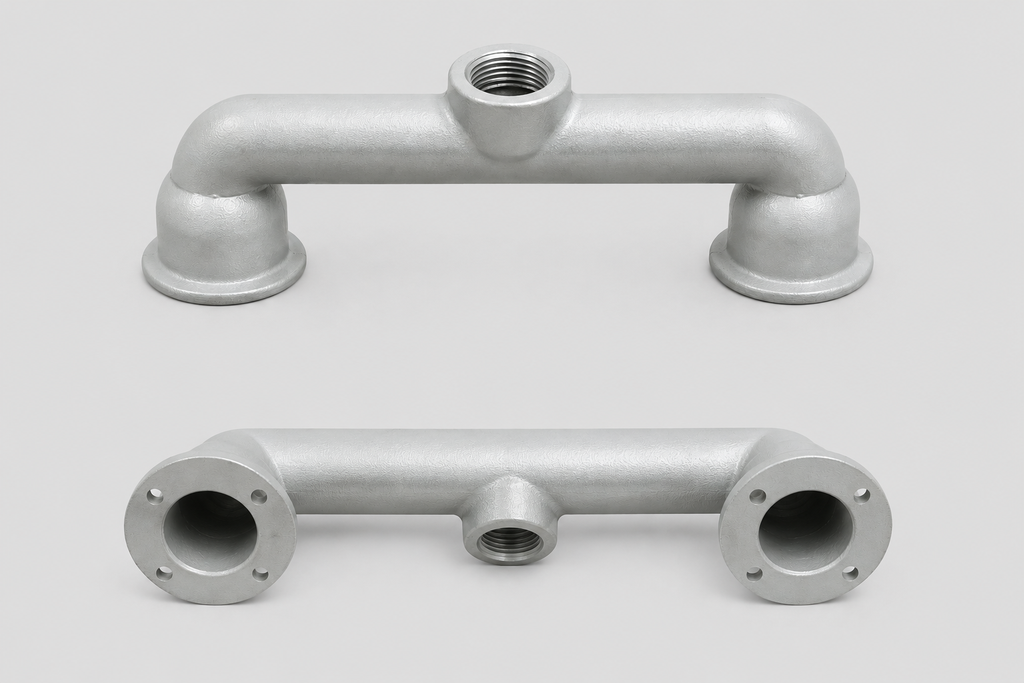

V 04-5020-01: Manifold, Discharge – The primary upper exhaust collector manifold casting. It aggregates the pressurized process fluid from both active liquid chambers and channels it cleanly out into the discharge piping.
V 04-5020-01: Manifold, Discharge – The primary upper exhaust collector manifold casting. It aggregates the pressurized process fluid from both active liquid chambers and channels it cleanly out into the discharge piping.
Key Features
- Primary exit collector manifold component engineered to channel output process streams cleanly away.
- Smooth internal flow channels minimize fluid resistance to keep overall volumetric transfer speeds optimized.
- Heavy reinforced casting wall architecture safely handles continuous heavy pipeline loading strains cleanly.
- Precision-machined face paths ensure tight, leak-free seat and check valve interface matching tracks.
- Rigid base design mounts firmly to the pump frame to prevent operational vibration loosening loops.
Technical Specifications
| Component Name | Manifold, Discharge |
| Manufacturer / Brand | Wilden |
| Component Classification | Upper Fluid Collection Outflow Manifold |
| Max Working Pressure | 125 PSI (8.6 Bar) continuous design rating |
| Primary Material | Heavy Die-Cast Structural Aluminum Alloy |
| Function | Combines the pressurized liquid streams from both chamber sides into a single discharge pipe path |
