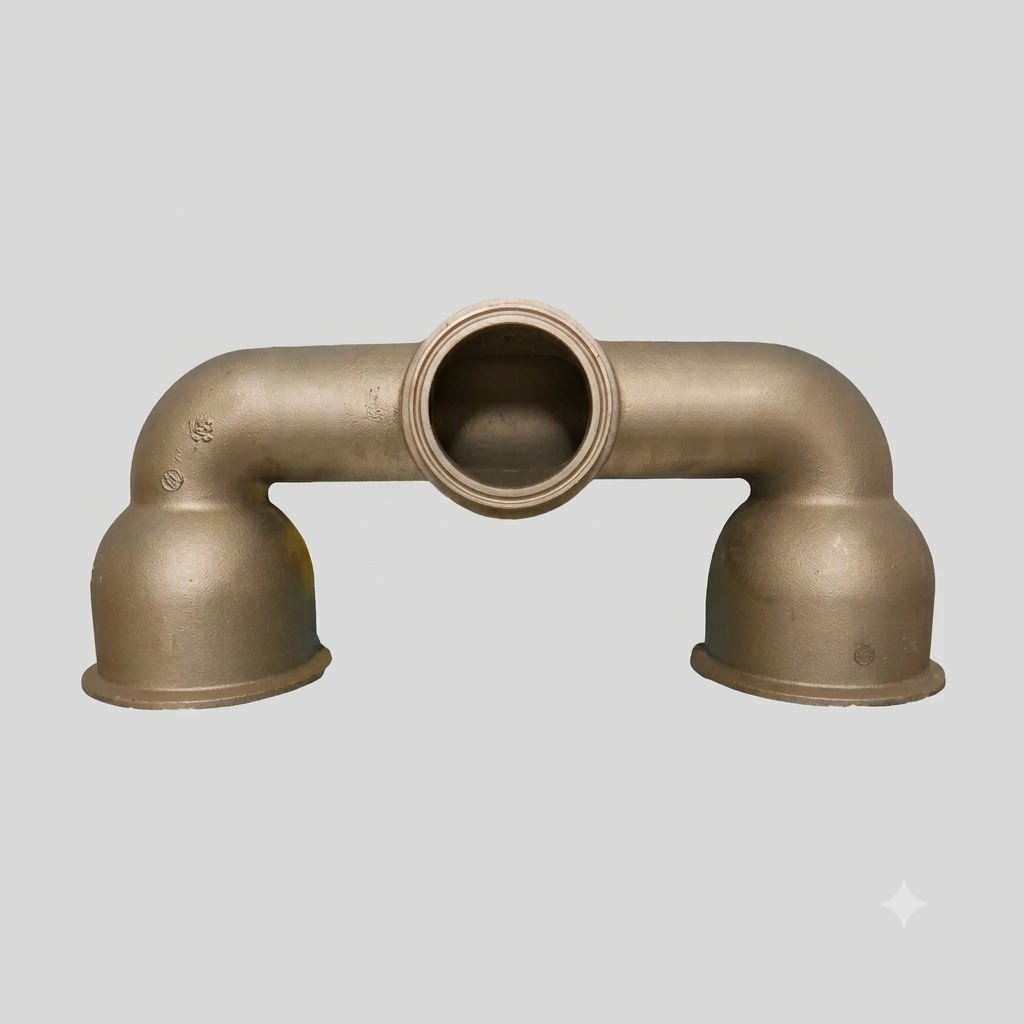

MANIFOLD, DISCH., TRI-CLOVER
Part No: V 04-5020-03-70P
Pack of 1
V 04-5020-03-70P: MANIFOLD, DISCH., TRI-CLOVER – A highly sanitary upper fluid discharge manifold featuring a Tri-Clover clamp flange connection layout. It provides a flush, crack-free inner profile essential for sanitary, food-grade, or pharmaceutical processing.
V 04-5020-03-70P: MANIFOLD, DISCH., TRI-CLOVER – A highly sanitary upper fluid discharge manifold featuring a Tri-Clover clamp flange connection layout. It provides a flush, crack-free inner profile essential for sanitary, food-grade, or pharmaceutical processing.
Key Features
- Specialized fluid collector manifold utilizing standard Tri-Clover sanitary clamp endpoints.
- Micro-polished internal wetted path contours eliminate cracks or crevices to prevent organic fluid traps.
- Ideal for high-purity processing applications, food-grade transfer, and clean-in-place (CIP) layouts.
- Quick-clamping architecture accelerates rapid, tool-less line tear-down steps during routine flushes.
- Sealed interior tracking lines block hazardous wetted process media or fumes from escaping into factory ambient air.
Technical Specifications
| Component Name | MANIFOLD, DISCH., TRI-CLOVER |
| Manufacturer / Brand | Wilden |
| Component Classification | FDA Sanitary Grade Upper Outflow Manifold |
| Connection Port Interface | 1.5-Inch Sanitary Tri-Clamp (Tri-Clover) Quick-Disconnect Interface |
| Surface Finish Profile | Ultra-smooth mirror-polished internal fluid tracks (Ra < 0.8 Microns) to eliminate bacteria traps |
| Primary Applications | Dairy routing, food processing, and high-purity pharmaceutical dosing lines |
