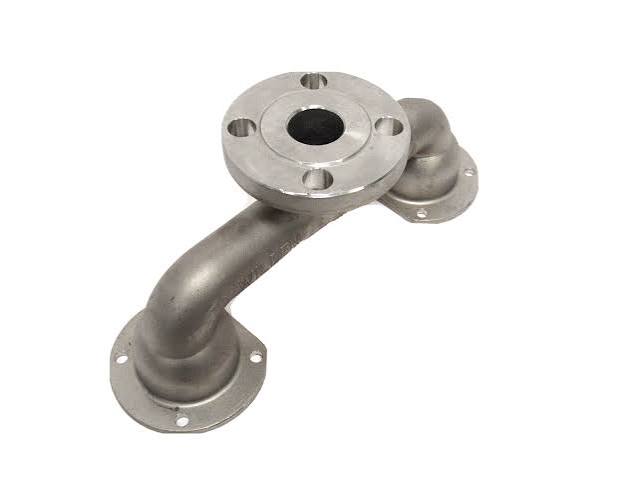

Manifold, Discharge
Part No: V 04-5020-03
Pack of 1
V 04-5020-03: Manifold, Discharge – A heavy-capacity general-utility upper fluid discharge manifold casting designed to handle repetitive mechanical stresses across continuous industrial loops.
V 04-5020-03: Manifold, Discharge – A heavy-capacity general-utility upper fluid discharge manifold casting designed to handle repetitive mechanical stresses across continuous industrial loops.
Key Features
- Heavy-duty fluid collector manifold component engineered to channel output process streams smoothly away from chambers.
- Smooth internal flow channels minimize fluid resistance to keep overall volumetric transfer speeds optimized.
- Heavy reinforced casting wall architecture safely handles continuous heavy pipeline loading strains cleanly.
- Precision-machined face paths ensure tight, leak-free seat and check valve interface matching tracks.
- Rigid base design mounts firmly to the pump frame to prevent operational vibration loosening loops.
Technical Specifications
| Component Name | Manifold, Discharge |
| Manufacturer / Brand | Wilden |
| Component Classification | Upper Fluid Collection Outflow Manifold |
| Material Compliance Standards | Raw material conforms to ASTM A240 / EN 10088-2 Grade 1.4401 (SS 316) |
| Max Working Pressure | 125 PSI (8.6 Bar) continuous engineering pressure threshold |
| Function | Unifies pressurized process fluid streams from both chamber sides into a single discharge pipeline |
