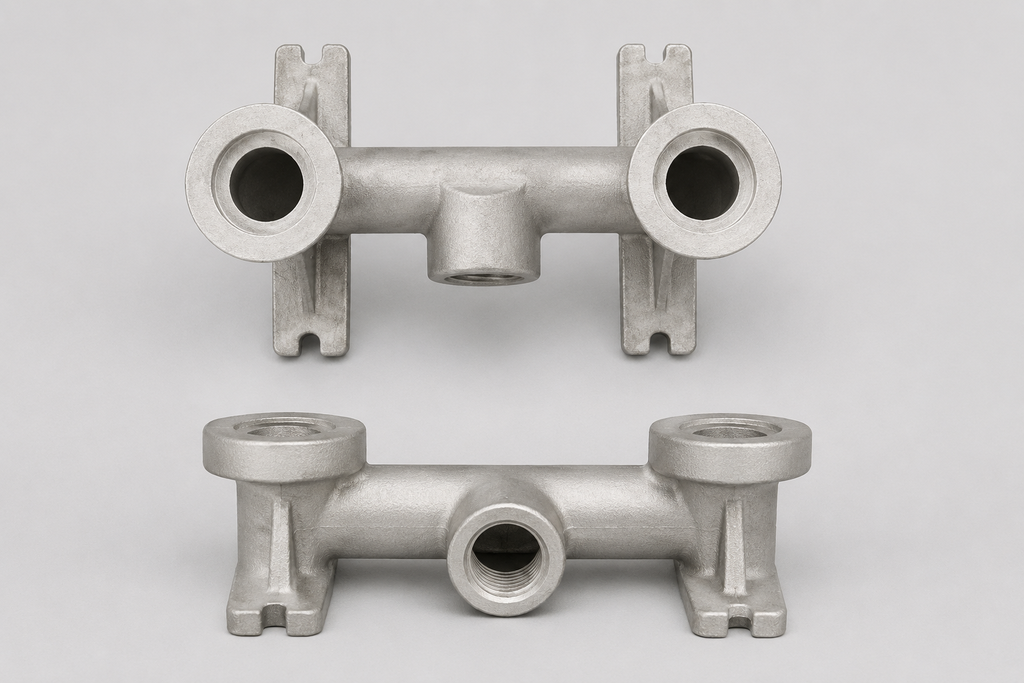

Manifold, Inlet, Footed
Part No: V 04-5080-02
Pack of 1
V 04-5080-02: Manifold, Inlet, Footed – A standard replacement lower footed suction manifold block designed to receive incoming fluid streams evenly and route them through the bottom check valves.
V 04-5080-02: Manifold, Inlet, Footed – A standard replacement lower footed suction manifold block designed to receive incoming fluid streams evenly and route them through the bottom check valves.
Key Features
- Alternative footed intake manifold configuration or material variant tailored for standard pump models.
- Broad base footprint provides clear open clearance beneath the pump manifold ports for intake pipeline tracks.
- High-density composition absorbs localized pressure impacts from rapid internal shifting cycles smoothly.
- Precision-machined port steps ensure tight, leak-free transitions between adjoining wetted check valve parts.
- Simple drop-in layout facilitates quick, effortless component replacement steps on the maintenance floor.
Technical Specifications
| Component Name | Manifold, Inlet, Footed |
| Manufacturer / Brand | Wilden |
| Component Classification | Lower Fluid Intake Distribution Manifold (Footed Structural Cast) |
| Material Compliance Standards | Cast Ductile Iron / Finished industrial structural frame |
| Structural Durability | High structural abrasion resistance; ideal for coarse particle mud/slurry transfer loops |
Product Documents
0
No documents available for this product.
