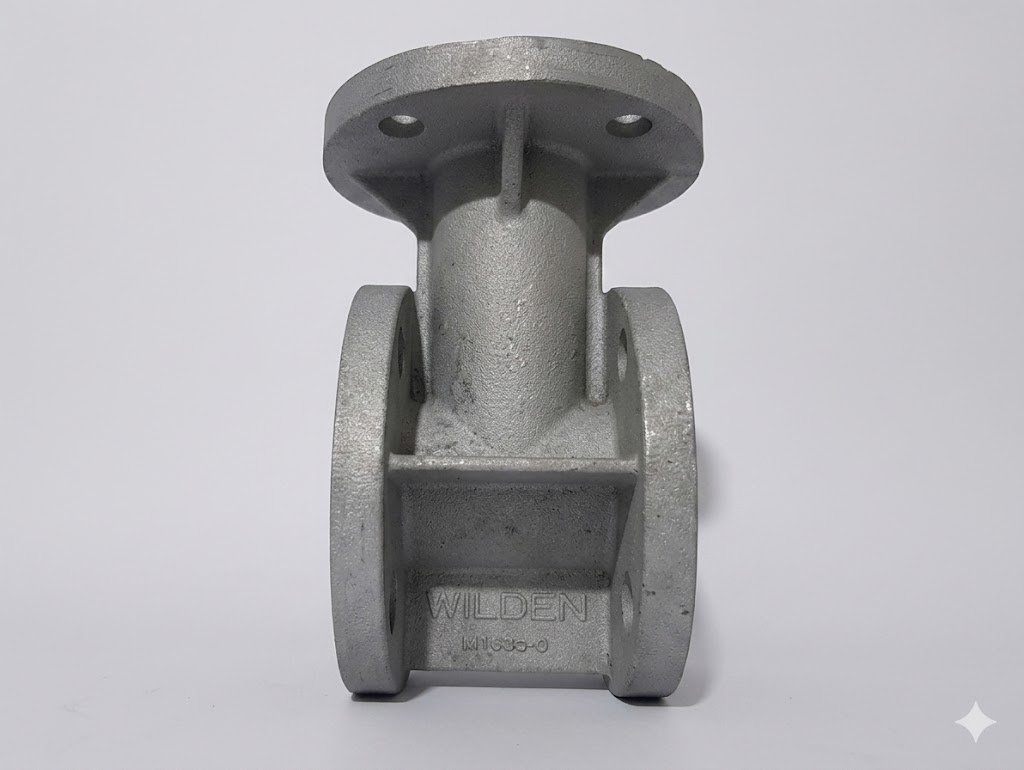

T-SECTION, BOLTED, (ANSI)
📐 Product Angles & Views
3D View / Front
Left Side
Right Side
Top Side
Product Video
WILDEN ®

T-SECTION, BOLTED, (ANSI)

Part No: V 04-5180-01
★★★★★ New ● Out of Stock

Pack of 1

https://test.vistarb2b.com/web/image/product.template/4520/image_1920?unique=3b42cc8
Price
₹ 5,603.13 ₹ 3735.42
Quantity
Add to Cart
Buy Now

This combination does not exist.

👁 3290 Customers Visited 🛒 43 Customers Purchased 📦 172 Units Sold
🚚 Ships in 1–2 days
📄 GST Invoice
↩️ Non-returnable
📍 Check Delivery
Contact Us

Share

V 04-5180-01: T-SECTION, BOLTED, (ANSI) – A heavy-duty, flanged T-shaped fluid pipe junction designed for bolted-casing pump systems. It aligns with strict ANSI dimensional standards to cleanly split or combine primary fluid delivery tracks.

V 04-5180-01: T-SECTION, BOLTED, (ANSI) – A heavy-duty, flanged T-shaped fluid pipe junction designed for bolted-casing pump systems. It aligns with strict ANSI dimensional standards to cleanly split or combine primary fluid delivery tracks.

Key Features
  1. T-shaped split fluid distribution branch block configured with a secure bolted ANSI flanged installation template.
  2. Multi-bolt layout distributes massive clamping pressure evenly to prevent high-pressure static joint blowouts.
  3. Heavy-walled structural channels withstand intense dynamic fluid velocity friction and line spikes safely.
  4. Precision bolt-hole tracking layouts ensure parallel component matching along wetted pump headers.
  5. Provides a permanent, highly rigid inline manifold block to reduce planned plant service down-hours.
Technical Specifications
Component NameT-SECTION, BOLTED, (ANSI)
Manufacturer / BrandWilden
Component ClassificationMetallic Bolted-Manifold Piping T-Section / Diverter Fitting
Material Compliance StandardsRaw material conforms to ASTM B26 / EN AC-46500 Die-Cast Aluminum parameters
Connection Port InterfaceIntegrated multi-port ANSI Flanged branch and run layout boundaries
FunctionSplits or unifies high-pressure bolted fluid streams across multiple pump entry lines
