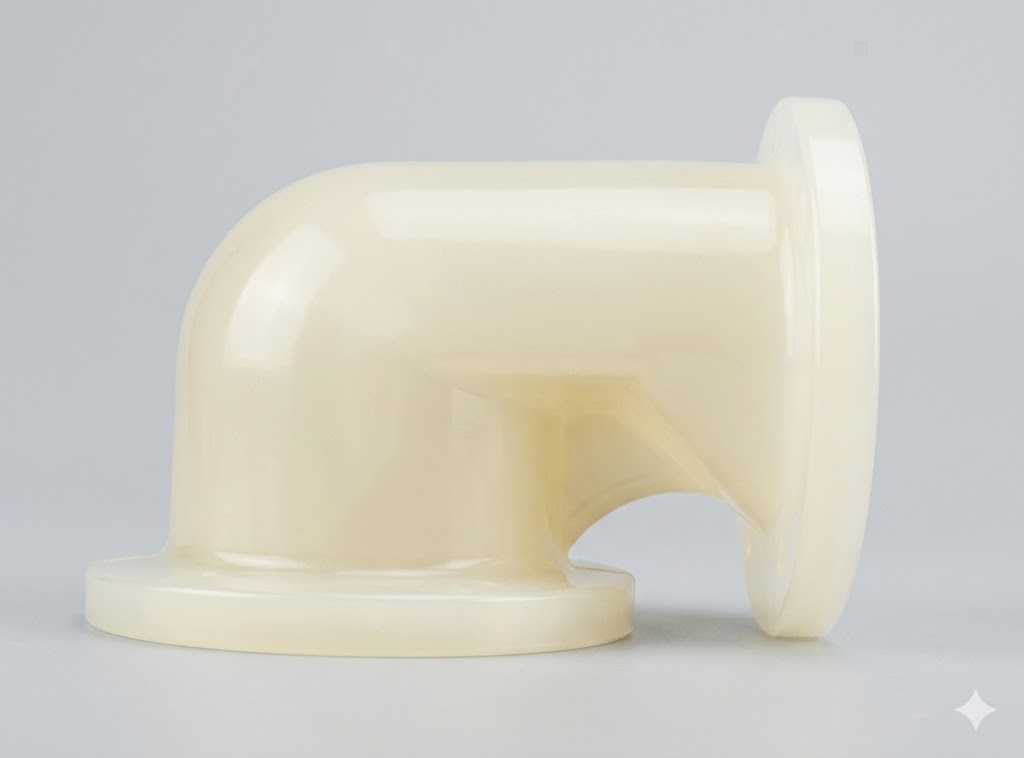

ELBOW, DISCHARGE MANIFOLD
Part No: V 04-5230-20
Pack of 1
V 04-5230-20: ELBOW, DISCHARGE MANIFOLD – A 90-degree fluid discharge elbow fitting that bolts to the upper manifold, routing pressurized process fluid cleanly into right-angle downstream configurations.
V 04-5230-20: ELBOW, DISCHARGE MANIFOLD – A 90-degree fluid discharge elbow fitting that bolts to the upper manifold, routing pressurized process fluid cleanly into right-angle downstream configurations.
Key Features
- Heavy-duty 90-degree exit elbow component designed to channel output process streams cleanly away from chambers.
- Handles high exit flow velocities and abrupt pressure surges without localized structural material fatigue leaks.
- High tensile strength metal or composite construction prevents bowing, bending, or flexing during unexpected pipeline shocks.
- Distributes perimeter bolt clamping torque perfectly evenly around matching gaskets to stop leak paths.
- Sealed interior paths prevent dangerous process chemical mediums or vapors from escaping out to the room air.
Technical Specifications
| Component Name | ELBOW, DISCHARGE MANIFOLD |
| Manufacturer / Brand | Wilden |
| Component Classification | Non-Metallic 90-Degree Fluid Discharge Manifold Elbow |
| Primary Material | Solid Industrial Polypropylene (Poly / PP) |
| Max Liquid Pressure | 100 PSI (6.9 Bar) maximum temperature-dependent safe load handling limit |
| Operating Temperature | 32°F to 150°F (0°C to 66°C) (Strictly enforce do not freeze limits) |
