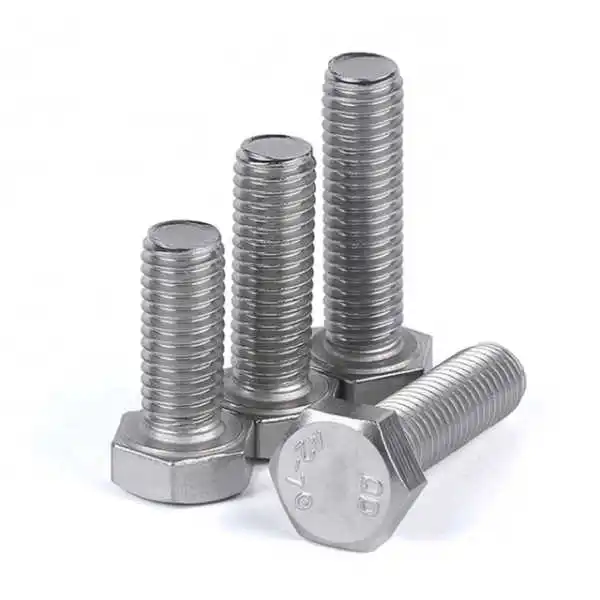

Screw, Hhc, 1/4-20 X 3,Gr5
Part No: V 04-6130-08
Pack of 10
V 04-6130-08: Screw, Hhc, 1/4-20 X 3,Gr5 – A high-strength Grade 5 (Gr5) hex head cap screw measuring 1/4"-20 threading by 3 inches long, offering elevated mechanical yield strengths.
V 04-6130-08: Screw, Hhc, 1/4-20 X 3,Gr5 – A high-strength Grade 5 (Gr5) hex head cap screw measuring 1/4"-20 threading by 3 inches long, offering elevated mechanical yield strengths.
Key Features
- High-strength 1/4"-20 thread by 3 inches long Hex Head Cap screw certified to Grade 5 (Gr5) specifications.
- Medium carbon steel tempered matrix provides excellent yield strength thresholds for demanding industrial loads.
- Rigid material composition prevents thread stripping or head deformation under high-torque factory constraints.
- Distributes heavy mechanical clamping load metrics uniformly across component washer perimeters over long runs.
- Keeps critical pump manifold components locked tight against ongoing pump vibration harmonics lines.
Technical Specifications
| Component Name | Screw, Hhc, 1/4-20 X 3,Gr5 |
| Manufacturer / Brand | High-Precision Industrial Fastener Component |
| Component Classification | Grade 5 Hexagon Head Cap Screw Fastener (HHC) |
| Structural Sizing Metric | 1/4" Thread Diameter - 20 Threads Per Inch x 3.00 Inches Length / Grade 5 (Gr5) |
| Mechanical Material Profile | SAE J429 Grade 5 high-strength configuration (Minimum 85,000 PSI Yield Strength) |
| Primary Applications | Clamping fluid manifolds, mounting base plates, and securing outer casing tie points |
