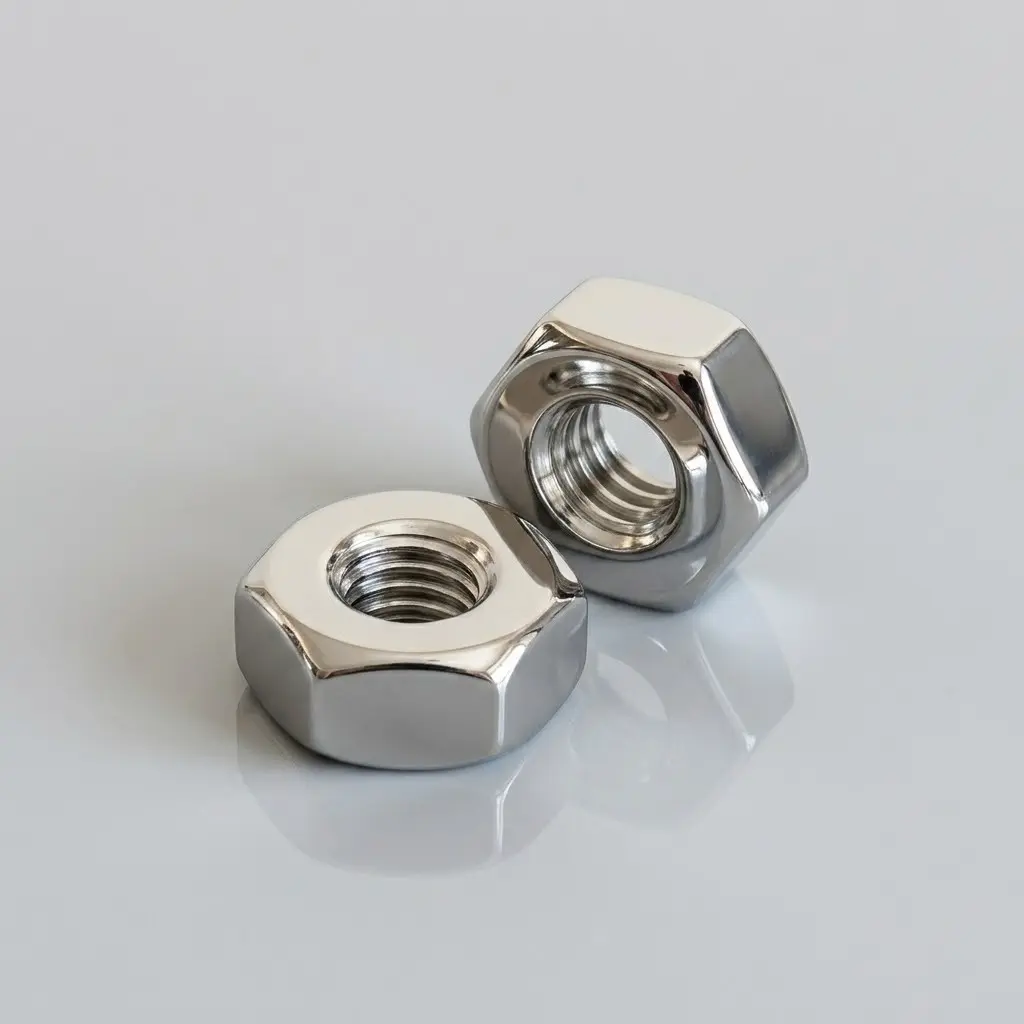

Nut, Hex, 1/4-20
Part No: V 04-6400-03
Pack of 10
V 04-6400-03: Nut, Hex, 1/4-20 – A standard six-sided industrial hex nut featuring a 1/4"-20 thread size, used across various casting points to lock matching assembly screws and clamp components tightly.
V 04-6400-03: Nut, Hex, 1/4-20 – A standard six-sided industrial hex nut featuring a 1/4"-20 thread size, used across various casting points to lock matching assembly screws and clamp components tightly.
Key Features
- Standardized 1/4"-20 thread external six-sided industrial hex nut for mating with matching fasteners.
- Precision cut internal threading cuts minimize binding or thread galling under intense manual torquing actions.
- Distributes heavy mechanical clamping load weight metrics uniformly across component washer perimeters.
- Rigid material composition prevents thread stripping or wall deformation under high-torque constraints.
- Keeps critical pump manifold components locked tight against ongoing pump vibration harmonics lines.
Technical Specifications
| Component Classification | Standard Finished Hexagon Fastening Nut |
| Primary Material Matrix | SAE J995 Grade 8 High-Tensile Carbon Steel |
| Proof Load Tensile Threshold | 150,000 PSI raw strip proof pressure limit capacity |
| Thread Pitch Metric | 1/4"-20 UNC Coarse thread internal alignment tracking |
| Tightening Friction Coefficient (μ) | 0.13 (oil coated baseline configuration parameters) |
| Mechanical Drive Hex Profile | Standard 7/16" across-flats heavy hex layout tracking dimensions |
