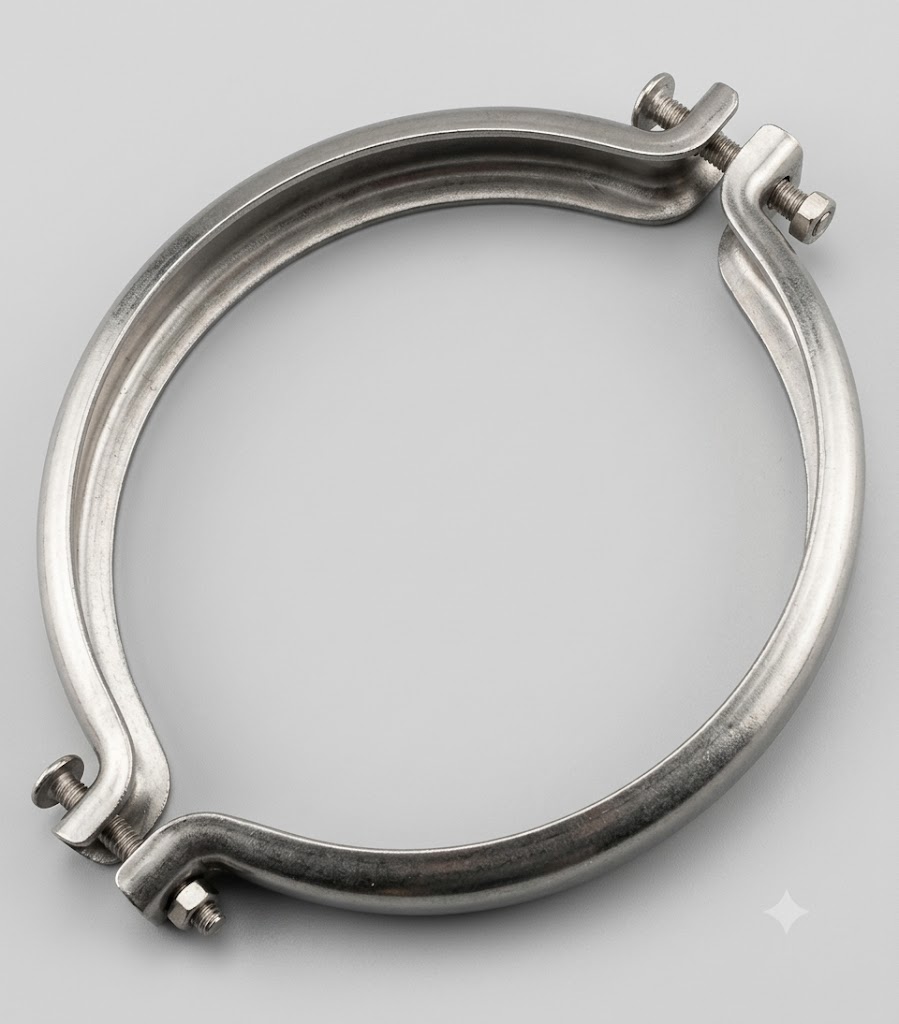

CLAMP BAND, LARGE Nested
Part No: V 04-7300-03
Pack of 1
V 04-7300-03: CLAMP BAND, LARGE Nested – A high-strength structural metal perimeter clamp ring featuring a nested geometry. It wraps over and sandwiches outer fluid casing chambers firmly onto the pump center block for a leak-proof seal.
V 04-7300-03: CLAMP BAND, LARGE Nested – A high-strength structural metal perimeter clamp ring featuring a nested geometry. It wraps over and sandwiches outer fluid casing chambers firmly onto the pump center block for a leak-proof seal.
Key Features
- Heavy-duty oversized clamp band layout engineered to securely clamp massive high-capacity fluid chambers.
- Distributes massive clamping loads uniformly around perimeters to prevent high-pressure static gasket blowouts.
- High physical strength framing blocks component bowing, bending, or flexing under sudden pipeline surges.
- Built to handle severe industrial settings, mechanical shock variables, and ongoing factory room knocks.
- Standardized drop-in configuration accelerates field preventative updates to cut plant maintenance down-hours.
Technical Specifications
| Component Classification | Heavy-Duty Chamber Perimeter Clamping Band |
| Material Standards & Hardness | Heavy Gauge AISI 304 Stainless Steel |
| Dynamic Tension / Torque Rating | Recommended outer clamp nut assembly torque: 15 to 20 ft-lbs (20 to 27 N-m) |
| Function Profile | Interlocks the primary liquid chamber shell tightly onto the center air backbone housing |
| Corrosion Resistance / Coating Profile | Clean unplated stainless surface layout to shield split-line junctions from chemical rust |
