DIAPHRAGM, PRIMARY, H800 FFLOW
📐 Product Angles & Views
3D View / Front
Left Side
Right Side
Top Side
Product Video
WILDEN ®

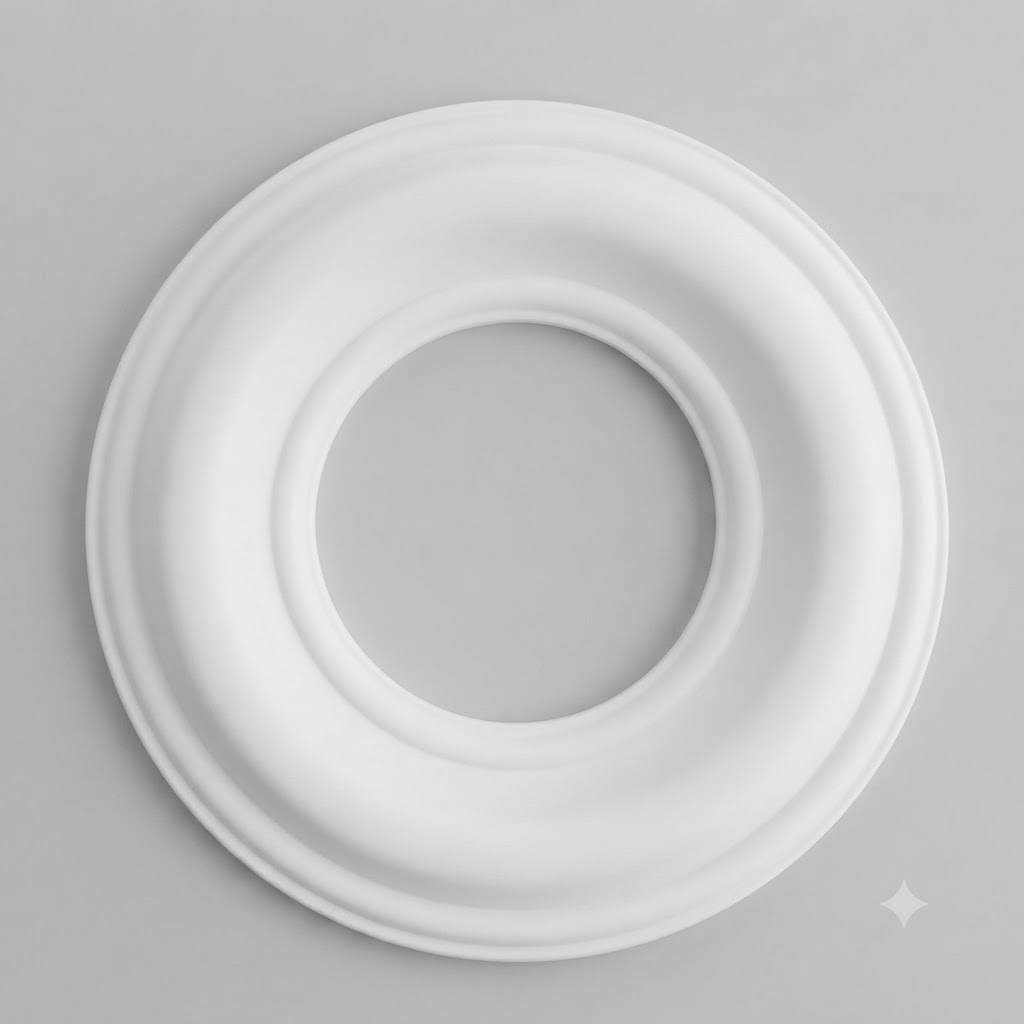

DIAPHRAGM, PRIMARY, H800 FFLOW

Part No: V 08-1011-55
★★★★★ New ● Out of Stock

Pack of 1

https://test.vistarb2b.com/web/image/product.template/4930/image_1920?unique=3b42cc8
Price
₹ 13,691.93 ₹ 9127.95
Quantity
Add to Cart
Buy Now

This combination does not exist.

👁 3421 Customers Visited 🛒 58 Customers Purchased 📦 232 Units Sold
🚚 Ships in 1–2 days
📄 GST Invoice
↩️ Non-returnable
📍 Check Delivery
Contact Us

Share

V 08-1011-55: DIAPHRAGM, PRIMARY, H800 FFLOW – A high-efficiency Full-Flow (FFLOW) series primary chemical diaphragm sheet, engineered specifically to match the structural requirements and maximize displacement volume inside H800 pumps.

V 08-1011-55: DIAPHRAGM, PRIMARY, H800 FFLOW – A high-efficiency Full-Flow (FFLOW) series primary chemical diaphragm sheet, engineered specifically to match the structural requirements and maximize displacement volume inside H800 pumps.

Key Features
  1. Premium fluoropolymer membrane engineered with an advanced Full Flow (FFLOW) geometry design for H800 pumps.
  2. Maximizes fluid displacement rates per stroke while significantly reducing internal flow restriction indices across ports.
  3. Exceptional resistance to extreme chemical mediums including strong alkalis, caustics, and highly aggressive acids.
  4. Low gas-permeability backing matrix stops hazardous volatile fumes from tracking into non-wetted air motor chambers.
  5. Precision outer bolt circle template ensures a reliable compression perimeter lock under standard factory torque parameters.
Technical Specifications
Component ClassificationHigh-Capacity High-Pressure Fluoropolymer Pumping Diaphragm
Material Standards & Hardness100% Virgin Sintered PTFE (Teflon Overlay) / H800 Core Fitment
Flex-Life Performance RatingFull-Flow (FFLOW) series extended flex convolution geometries
Function ProfileCustom scaled chemical-containment flexing face to isolate aggressive media inputs in 2" units
Operating Temperature Profile40°F to 220°F (4°C to 104°C) continuous process runs
