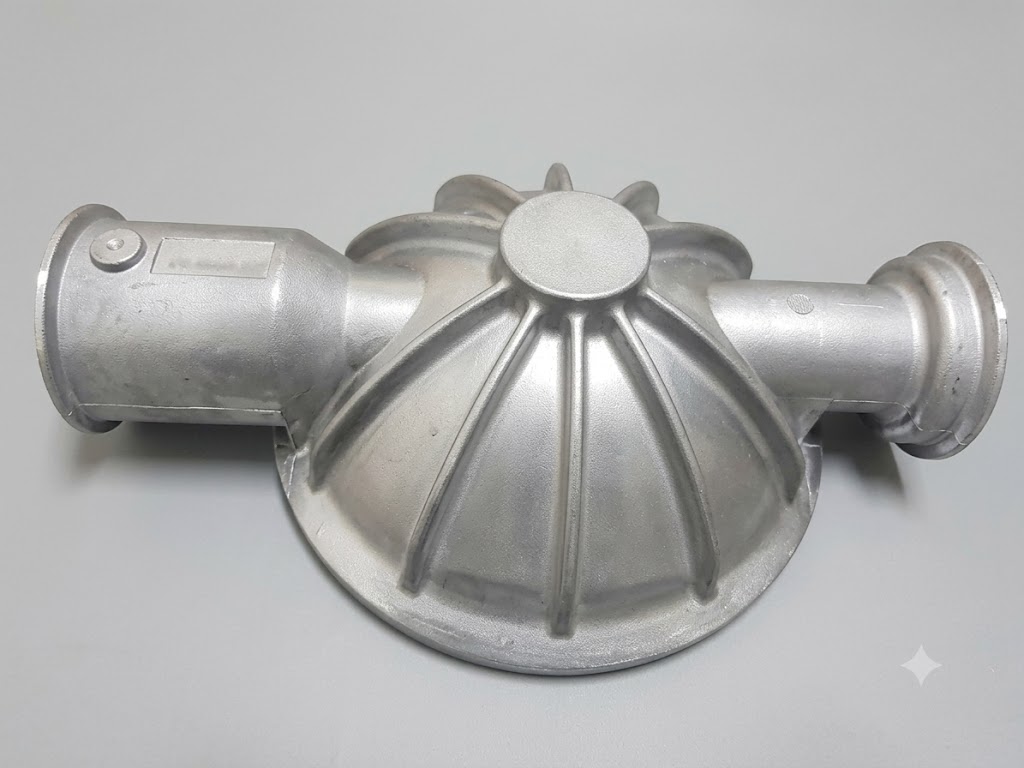

Chamber, Liquid
Part No: V 08-5000-01
Pack of 1
V 08-5000-01: Chamber, Liquid – The primary volumetric fluid end casing chamber housing. It encloses the active diaphragm assembly, safely containing cyclic hydraulic displacement forces during each pump stroke.
V 08-5000-01: Chamber, Liquid – The primary volumetric fluid end casing chamber housing. It encloses the active diaphragm assembly, safely containing cyclic hydraulic displacement forces during each pump stroke.
Key Features
- High-volume internal fluid containment pocket engineered to handle pressurized wetted process media.
- Heavy-walled cast or molded construction resists fatigue stress failures across millions of pump cycles.
- Optimized internal contours minimize liquid turbulence, flow resistance, and cavitation erosion paths.
- Features precision-machined port steps to ensure tight, leak-free seat and manifold interfaces.
- Provides the rigid mechanical boundary required for effective diaphragm fluid displacement loops.
Technical Specifications
| Brand / Manufacturer | Wilden |
| Component Classification | Metallic Pressure-Retaining Outer Liquid Chamber Cover |
| Material Compliance Standards | Heavy Die-Cast Structural Aluminum Alloy |
| Operating Temperature & System Pressure Limits | Temp: -20°F to 300°F (-29°C to 149°C) / Pressure: 125 PSI (8.6 Bar) Max |
| Dynamic Fluid Path Action & Intended Service | Forms the main high-pressure outer containment wall for fluid being forcefully displaced by the internal diaphragm |
