T-SECTION, MACHINED (ANSI/DIN)
📐 Product Angles & Views
3D View / Front
Left Side
Right Side
Top Side
Product Video
WILDEN ®

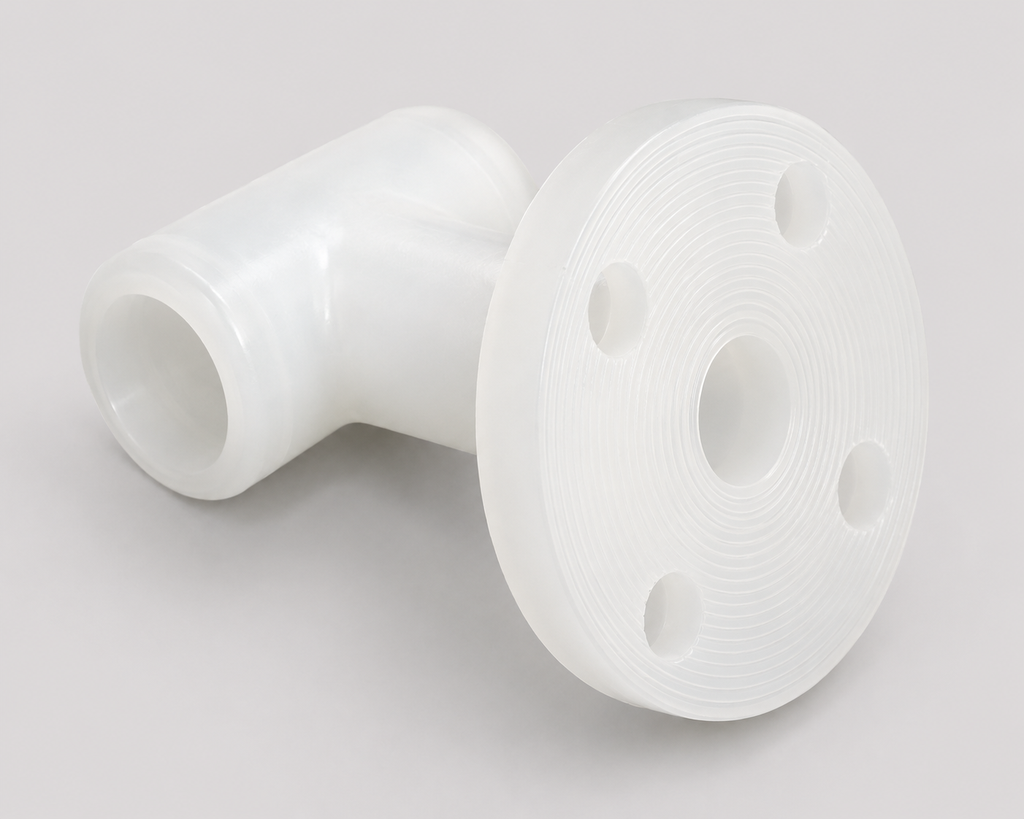

T-SECTION, MACHINED (ANSI/DIN)

Part No: V 08-5160-20
★★★★★ New ● Out of Stock

Pack of 1

https://test.vistarb2b.com/web/image/product.template/4618/image_1920?unique=3b42cc8
Price
₹ 12,049.83 ₹ 8033.22
Quantity
Add to Cart
Buy Now

This combination does not exist.

👁 3572 Customers Visited 🛒 58 Customers Purchased 📦 232 Units Sold
🚚 Ships in 1–2 days
📄 GST Invoice
↩️ Non-returnable
📍 Check Delivery
Contact Us

Share

V 08-5160-20: T-SECTION, MACHINED (ANSI/DIN) – A precision-machined flanged T-shaped pipe junction component. It features universal multi-standard bolt hole arrangements to seamlessly transition fluid tracks into both ANSI and DIN flanged piping systems.

V 08-5160-20: T-SECTION, MACHINED (ANSI/DIN) – A precision-machined flanged T-shaped pipe junction component. It features universal multi-standard bolt hole arrangements to seamlessly transition fluid tracks into both ANSI and DIN flanged piping systems.

Key Features
  1. Precision-machined dual-standard interface engineered to mount seamlessly onto both ANSI and DIN flanged pipe headers.
  2. Heavy-walled branching layout splits and routes wetted process fluid streams smoothly without pressure decay loops.
  3. Flat ground seating planes distribute clamping torque uniformly around flange gaskets to prevent leak path variables.
  4. High-density material structure safely handles continuous pipeline dynamic stresses and sudden pressure spikes.
  5. Direct drop-in configuration simplifies modular integration inside complex industrial fluid transfer skids.
Technical Specifications
Brand / ManufacturerWilden
Component ClassificationMulti-Configurable Non-Metallic Flanged Piping T-Section
Material Compliance StandardsPrecision Machined Solid Industrial Polypropylene (Poly / PP)
Operating Temperature & System Pressure LimitsTemp: 32°F to 150°F (0°C to 66°C) [Do Not Freeze] / Pressure: 100 PSI (6.9 Bar) Max
Connection Port Sizing & ProfileDual slotted flanged layout boundaries conforming natively to both ANSI Class 150 and Metric DIN PN10/16 piping alignments
