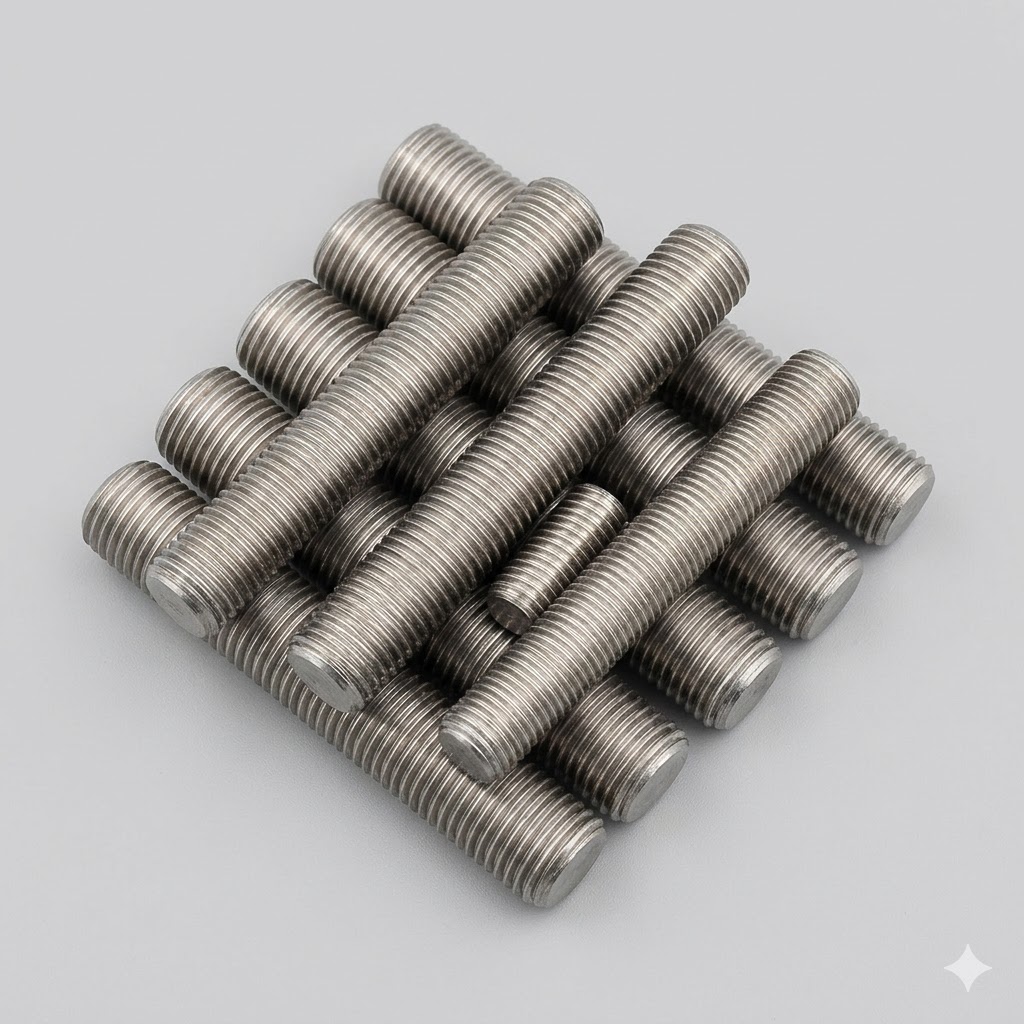

Stud, 1/2-20 X 1 7/8
Part No: V 08-6150-08
Pack of 1
V 08-6150-08: Stud, 1/2-20 X 1 7/8 – A dual fine-threaded structural metal stud measuring 1/2"-20 threads by 1.875 inches long, utilized to provide precise semi-permanent alignment pins for fluid manifolds.
V 08-6150-08: Stud, 1/2-20 X 1 7/8 – A dual fine-threaded structural metal stud measuring 1/2"-20 threads by 1.875 inches long, utilized to provide precise semi-permanent alignment pins for fluid manifolds.
Key Features
- Double-ended threaded industrial 1/2"-20 fine thread by 1-7/8 inches long mechanical stud bolt.
- Permits dual-sided hardware securing to distribute perimeter compression forces evenly onto manifold joints.
- Hardened structural steel core prevents bending or fatigue fractures under heavy dynamic fluid loading forces.
- Clean precision end-threading ensures a rock-solid, balanced torque connection with fluid caps or plates.
- Simplifies maintenance by allowing rapid casing alignment updates without disturbing underlying base anchors.
Technical Specifications
| Brand / Manufacturer | High-Precision Industrial Fastener Component |
| Component Classification | Continuous Threaded Fine Structural Fastening Stud |
| Material Compliance Standards | Heavy Zinc-Plated High-Tensile Carbon Steel |
| Structural Sizing Metric | 1/2" Stud Diameter - 20 Threads Per Inch (UNF Fine Thread Standard) x 1.875 Inches Length |
| Dynamic Fluid Path Action & Intended Service | Inserts into blind manifold holes to provide rigid outer thread anchor pins for heavy fluid chamber setups |
