WILDEN ®

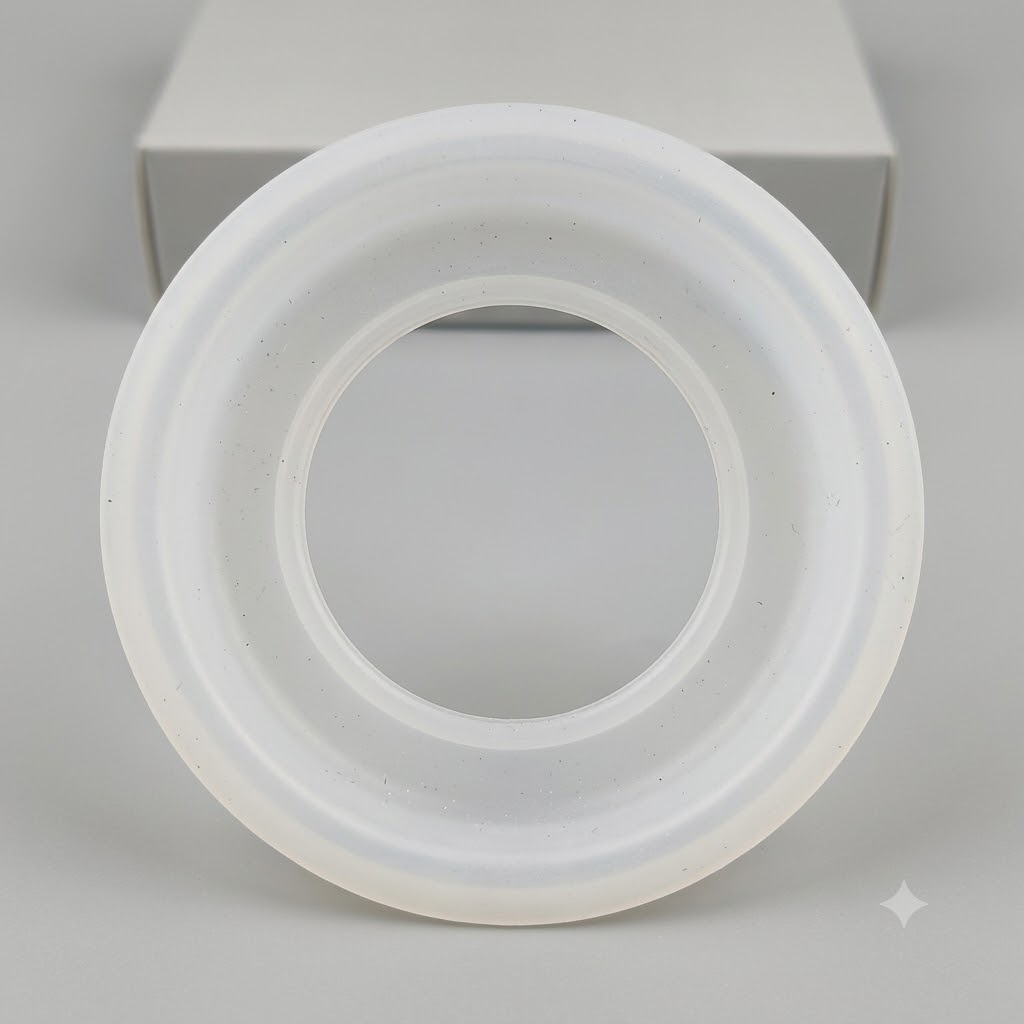

Diaphragm Primary Polyurethane

Part No: V 15-1010-50
★★★★★ New ● Out of Stock

Pack of 1

https://test.vistarb2b.com/web/image/product.template/4220/image_1920?unique=3b42cc8
Price
₹ 9,256.65 ₹ 6171.10
Quantity
Add to Cart
Buy Now

This combination does not exist.

👁 2938 Customers Visited 🛒 48 Customers Purchased 📦 192 Units Sold
🚚 Ships in 1–2 days
📄 GST Invoice
↩️ Non-returnable
📍 Check Delivery
Contact Us

Share

V 15-1010-50: Diaphragm Primary Polyurethane – A primary-stage fluid displacement diaphragm sheet molded from premium polyurethane material. It delivers exceptional abrasive wear resistance, making it perfect for transferring high-grit slurry, sand mixtures, and abrasive industrial waste.

V 15-1010-50: Diaphragm Primary Polyurethane – A primary-stage fluid displacement diaphragm sheet molded from premium polyurethane material. It delivers exceptional abrasive wear resistance, making it perfect for transferring high-grit slurry, sand mixtures, and abrasive industrial waste.

Key Features
  1. High-grade Polyurethane (PU) composition resists continuous dynamic flex fatigue, tearing, and kinking.
  2. Outstanding mechanical abrasion protection when pumping processing lines containing suspended sand, grit, or scale.
  3. Maintains a highly flexible, responsive contour to ensure excellent suction vacuum prime lift capabilities cleanly.
  4. Swell-resistant elastomer structure is unaffected by standard factory line lubricants or light oil emulsions.
  5. Precision molded perimeter thickness creates a drop-tight static perimeter seal lock against liquid fluid caps under torque.
Technical Specifications
Brand / ManufacturerWilden
Operating Temperature Limits10°F to 150°F (-12°C to 66°C) continuous fluid service boundaries
Maximum System Pressure Limits125 PSI (8.6 Bar) maximum alternating process line pressure limit
Material Specification & HardnessLiquid-Cast High-Density Thermoplastic Polyurethane Elastomer
Ultimate Tensile / Break StretchUltimate Tensile Strength up to 6,500 PSI (45 MPa) / Extreme flex limits
