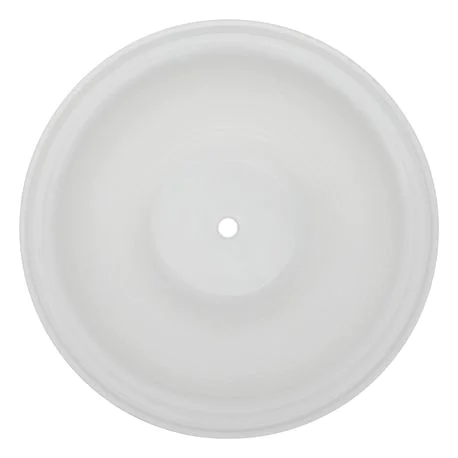

Diaphragm Primary Bolted
📐 Product Angles & Views
3D View / Front
Left Side
Right Side
Top Side
Product Video
WILDEN ®

Diaphragm Primary Bolted

Part No: V 15-1010-55-42
★★★★★ New ● Out of Stock

Pack of 1

https://test.vistarb2b.com/web/image/product.template/4415/image_1920?unique=3b42cc8
Price
₹ 20,252.70 ₹ 13501.80
Quantity
Add to Cart
Buy Now

This combination does not exist.

👁 3421 Customers Visited 🛒 58 Customers Purchased 📦 232 Units Sold
🚚 Ships in 1–2 days
📄 GST Invoice
↩️ Non-returnable
📍 Check Delivery
Contact Us

Share

V 15-1010-55-42: Diaphragm Primary Bolted – A specialized primary fluid-displacement diaphragm sheet designed specifically for bolted-style liquid casings. It provides a secure, leak-proof flat perimeter seal profile to handle high-pressure chemical displacement surges.

V 15-1010-55-42: Diaphragm Primary Bolted – A specialized primary fluid-displacement diaphragm sheet designed specifically for bolted-style liquid casings. It provides a secure, leak-proof flat perimeter seal profile to handle high-pressure chemical displacement surges.

Key Features
  1. Pure PTFE flexible sheet layer paired with an absolute rigid bolted mechanical alignment fastening template pattern.
  2. Bolted configuration eliminates dynamic assembly slippage or perimeter pressure leaks under fluctuating line surges.
  3. Handles high operating temperatures cleanly without structural thinning, bloating, or creep cold flow deformations under load.
  4. Distributes perimeter clamping loads uniformly around the fluid cap rim to eliminate high-pressure gasket blowout paths.
  5. Severe-duty construction handles continuous intense check cycle vibrations without experiencing fatigue fractures.
Technical Specifications
Brand / ManufacturerWilden
Operating Temperature Limits40°F to 220°F (4°C to 104°C) continuous service limits
Maximum System Pressure Limits125 PSI (8.6 Bar) maximum process line pressure limits in bolted liquid ends
Material Specification & HardnessPrecision-Machined PTFE Facing backed by a durable rubber cushion plate
Ultimate Tensile / Break StretchPre-formed perimeter bolt ring tracks accommodating secure, leak-proof bolted casing alignments
