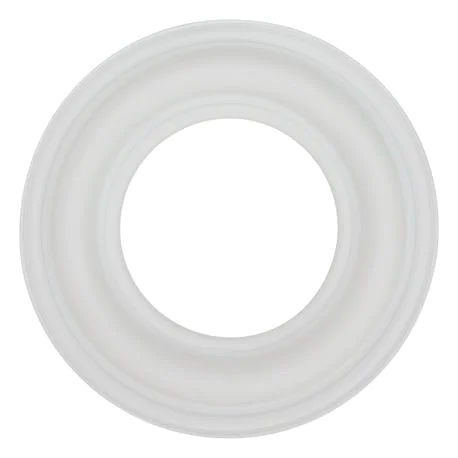

DIAPHRAGM, PRIMARY, FULL FLOW
📐 Product Angles & Views
3D View / Front
Left Side
Right Side
Top Side
Product Video
WILDEN ®

DIAPHRAGM, PRIMARY, FULL FLOW

Part No: V 15-1040-55
★★★★★ New ● In Stock

Pack of 1

https://test.vistarb2b.com/web/image/product.template/2340/image_1920?unique=3b42cc8
Price
₹ 18,255.90 ₹ 12170.60
Quantity
Add to Cart
Buy Now
In Stock

This combination does not exist.

👁 3498 Customers Visited 🛒 34 Customers Purchased 📦 136 Units Sold
🚚 Ships in 1–2 days
📄 GST Invoice
↩️ Non-returnable
📍 Check Delivery
Contact Us

Share

V 15-1040-55: DIAPHRAGM, PRIMARY, FULL FLOW – A high-efficiency primary diaphragm built with expanded outer flexing convolutions to maximize internal volumetric displacement and increase total flow rate per stroke.

V 15-1040-55: DIAPHRAGM, PRIMARY, FULL FLOW – A high-efficiency primary diaphragm built with expanded outer flexing convolutions to maximize internal volumetric displacement and increase total flow rate per stroke.

Key Features
  1. Premium fluoropolymer membrane engineered with an advanced Full Flow geometry design to optimize displacement volume.
  2. Maximizes fluid displacement rates per stroke while significantly reducing internal flow restriction indices across ports.
  3. Exceptional resistance to extreme chemical mediums including strong alkalis, caustics, and highly aggressive acids.
  4. Low gas-permeability backing matrix stops hazardous volatile fumes from tracking into non-wetted air motor chambers.
  5. Precision outer bolt circle template ensures a reliable compression perimeter lock under standard factory torque parameters.
Technical Specifications
Brand / ManufacturerWilden
Operating Temperature Limits40°F to 220°F (4°C to 104°C) pure chemical line bounds
Maximum System Pressure Limits125 PSI (8.6 Bar) continuous volumetric fluid displacement tracking
Material Specification & Hardness100% Virgin Sintered PTFE (Teflon Face Overlay Profile) / 60 Rockwell R
Ultimate Tensile / Break StretchExtended flexing convolution geometry to maximize displacement per stroke in large-bore liquid ends
