  3. Piston, Outer, (Non-Ptfe) (V 15-4550-01)
INR

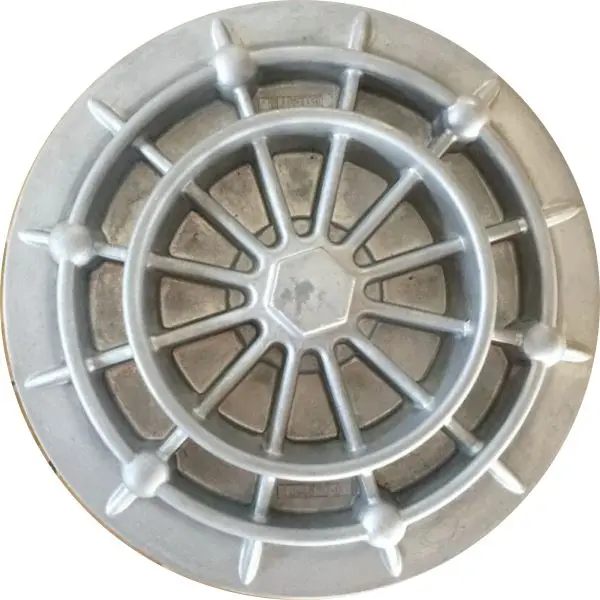

Piston, Outer, (Non-Ptfe)
📐 Product Angles & Views
3D View / Front
Left Side
Right Side
Top Side
Product Video
WILDEN ®

Piston, Outer, (Non-Ptfe)

Part No: V 15-4550-01
★★★★★ New ● Out of Stock

Pack of 1

https://test.vistarb2b.com/web/image/product.template/4224/image_1920?unique=3b42cc8
Price
₹ 6,684.60 ₹ 4456.40
Quantity
Add to Cart
Buy Now

    This combination does not exist.

    👁 4376 Customers Visited 🛒 27 Customers Purchased 📦 108 Units Sold
    🚚 Ships in 1–2 days
    📄 GST Invoice
    ↩️ Non-returnable
    📍 Check Delivery
    Contact Us

    Share

    V 15-4550-01: Piston, Outer, (Non-Ptfe) – A rigid outer liquid-side clamping disc designed to safely sandwich standard rubber or TPE (non-PTFE) diaphragms flat against the central connecting shaft. It prevents fluid leakage and balances stroke forces.

    V 15-4550-01: Piston, Outer, (Non-Ptfe) – A rigid outer liquid-side clamping disc designed to safely sandwich standard rubber or TPE (non-PTFE) diaphragms flat against the central connecting shaft. It prevents fluid leakage and balances stroke forces.

    Key Features
    1. Precision-machined non-PTFE outer piston element engineered to distribute clamping force loops uniformly.
    2. Contoured smooth radius edges eliminate sharp pinch points to maximize dynamic elastomer flex life hours.
    3. Smoothly machined matching surface ensures parallel component seating boundaries against flexible diaphragms.
    4. Built to handle continuous pneumatic cycling frequencies without rapid material operational fatigue lines cleanly.
    5. Pre-matched configuration handles manual or air-tool tightening metrics without risk of micro-fracture stress breaks.
    Technical Specifications
    Brand / ManufacturerWilden
    Operating Temperature Limits-10°F to 200°F (-23°C to 93°C) continuous process boundaries
    Maximum System Pressure LimitsWithstands continuous alternating hydraulic stroke fatigue loads up to 125 PSI (8.6 Bar)
    Material Compliance StandardsHeavy-Duty Zinc-Plated Carbon Steel / Ductile Iron casting layout
    Dynamic Fluid Path Action & Intended ServiceStandard fluid-side clamp plate that mounts directly onto the threaded connecting shaft end to secure standard rubber/elastomer diaphragms
    Product Documents
    0
    No documents available for this product.
