  3. Piston, Outer, UF (V 15-4560-01)
INR

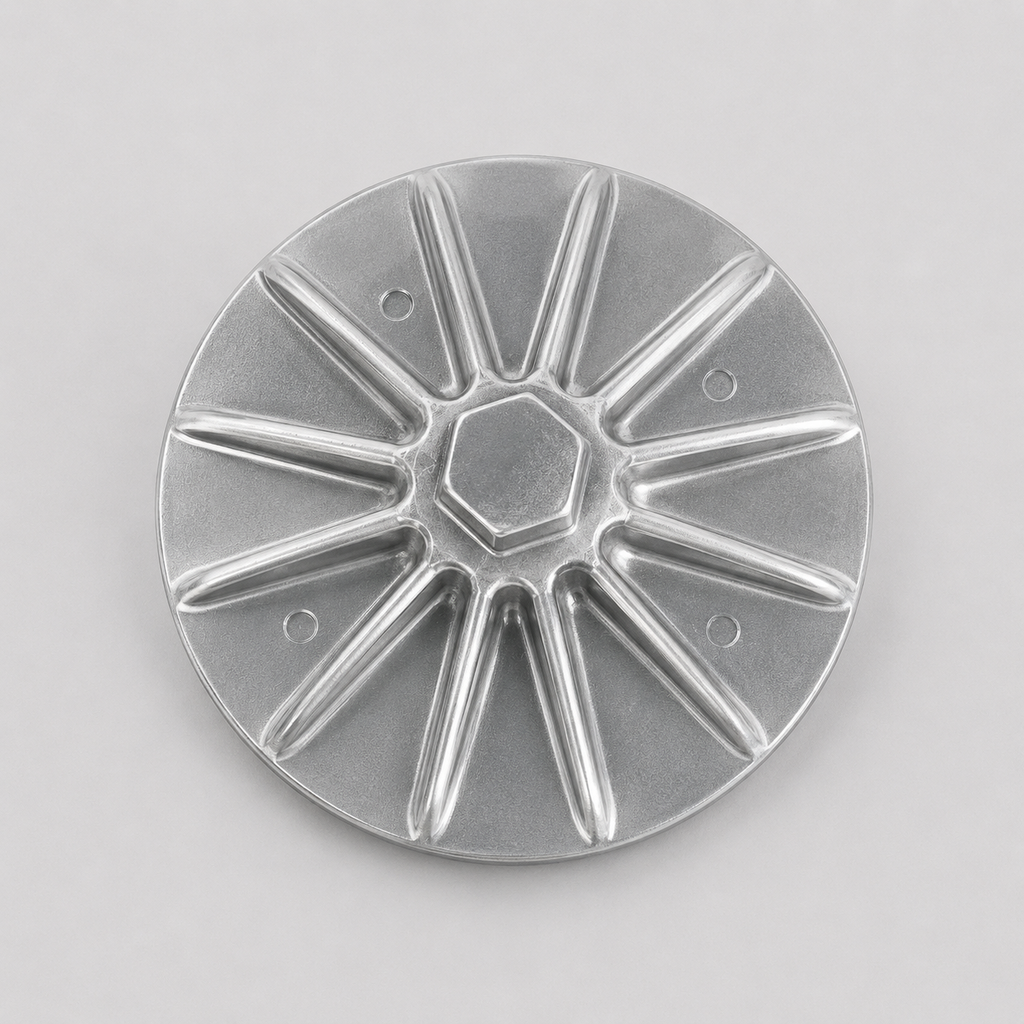

Piston, Outer, UF
📐 Product Angles & Views
3D View / Front
Left Side
Right Side
Top Side
Product Video
WILDEN ®

Piston, Outer, UF

Part No: V 15-4560-01
★★★★★ New ● Out of Stock

Pack of 1

https://test.vistarb2b.com/web/image/product.template/4646/image_1920?unique=3b42cc8
Price
₹ 11,556.48 ₹ 7704.32
Quantity
Add to Cart
Buy Now

This combination does not exist.

👁 2947 Customers Visited 🛒 59 Customers Purchased 📦 236 Units Sold
🚚 Ships in 1–2 days
📄 GST Invoice
↩️ Non-returnable
📍 Check Delivery
Contact Us

Share

V 15-4560-01: Piston, Outer, UF – A specialized outer clamping disc engineered with a unique profile contour to perfectly accommodate the high flex curves of dynamic Ultra-Flex (UF) diaphragms.

V 15-4560-01: Piston, Outer, UF – A specialized outer clamping disc engineered with a unique profile contour to perfectly accommodate the high flex curves of dynamic Ultra-Flex (UF) diaphragms.

Key Features
  1. High-performance outer piston core pairing an advanced Ultra-Flex (UF) design with heavy clamped metal pump lines.
  2. Contoured smooth radius edges distribute clamping forces uniformly to maximize dynamic elastomer flex life hours.
  3. Low breakout internal friction characteristics significantly lower pump operational pneumatic startup air pressures.
  4. Precision engineered center core ensures concentric mechanical locking onto traveling primary drive shafts.
  5. Form-fit layout matches original engineering templates perfectly to eliminate manual field tracking adjustments.
Technical Specifications
Brand / ManufacturerWilden
Operating Temperature Limits-10°F to 200°F (-23°C to 93°C) high-frequency operations
Maximum System Pressure LimitsWithstands fast-alternating turnaround mechanical impact stress metrics up to 125 PSI (8.6 Bar)
Material Compliance StandardsHeavy-Duty Zinc-Plated Carbon Steel / Light Alloy casting
Dynamic Fluid Path Action & Intended ServiceCustom shallow pocket radius outer plate designed to lock thin-walled Ultra-Flex rubber diaphragms cleanly under full torque limits
