Manifold, Discharge
Part No: V 15-5020-01
Pack of 1

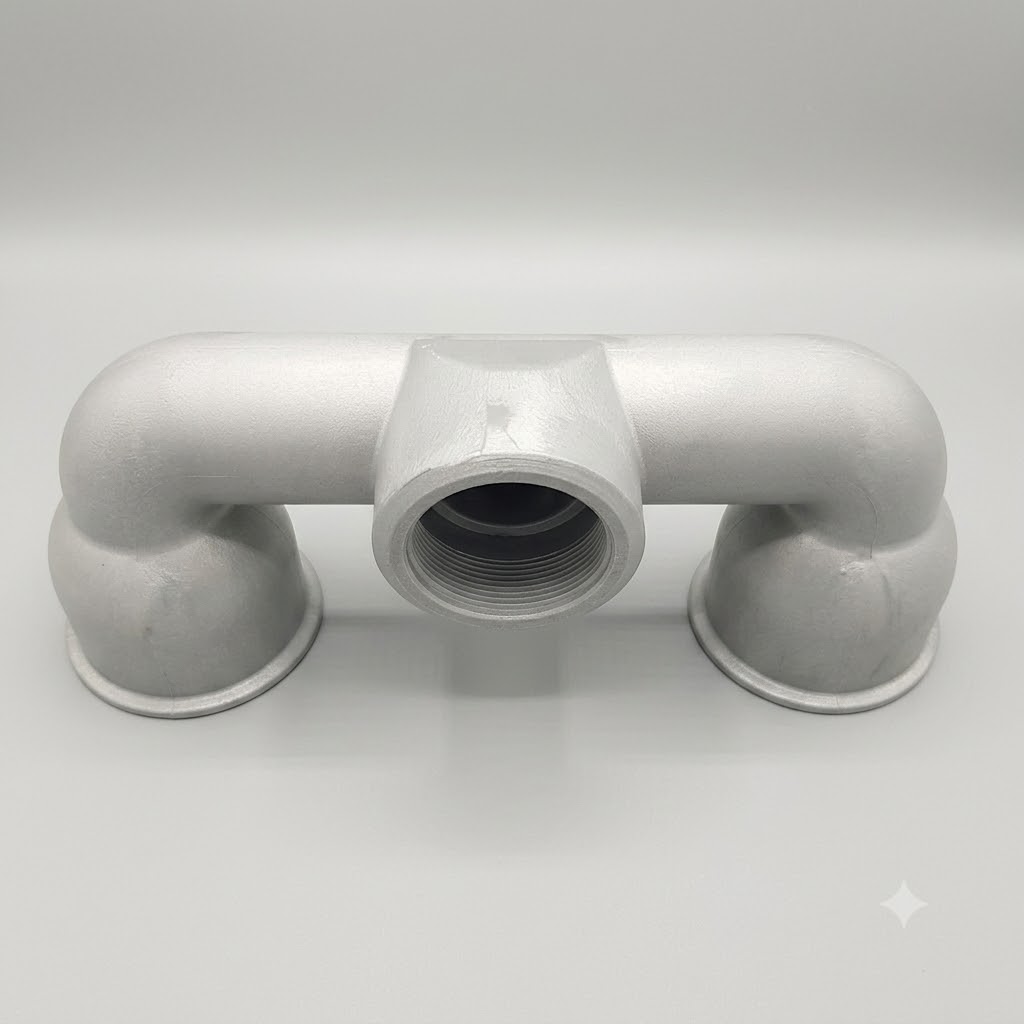

V 15-5020-01: Manifold, Discharge – The primary upper exhaust collector manifold casting. It aggregates the pressurized process fluid from both active liquid chambers and channels it cleanly out into the discharge piping.
V 15-5020-01: Manifold, Discharge – The primary upper exhaust collector manifold casting. It aggregates the pressurized process fluid from both active liquid chambers and channels it cleanly out into the discharge piping.
Key Features
- Primary exit collector manifold component engineered to channel output process streams cleanly away from chambers.
- Smooth internal flow channels minimize fluid resistance to keep overall volumetric transfer speeds optimized.
- Heavy reinforced casting wall architecture safely handles continuous heavy pipeline loading strains cleanly.
- Precision-machined face paths ensure tight, leak-free seat and check valve interface matching tracks.
- Rigid base design mounts firmly to the pump frame to prevent operational vibration loosening loops during runs.
Technical Specifications
| Brand / Manufacturer | Wilden |
| Operating Temperature Limits | -20°F to 300°F (-29°C to 149°C) standard plant operating boundaries |
| Maximum System Pressure Limits | Gas-tight fluid collection manifold path rated up to 125 PSI (8.6 Bar) continuous |
| Material Compliance Standards | Heavy Die-Cast Structural Aluminum Alloy |
| Dynamic Fluid Path Action & Intended Service | Upper fluid collection outflow manifold; combines pressurized process streams from left and right chambers into a single discharge pipeline |
