ELBOW, DISCHARGE, BOLTED
Part No: V 15-5250-01
Pack of 1

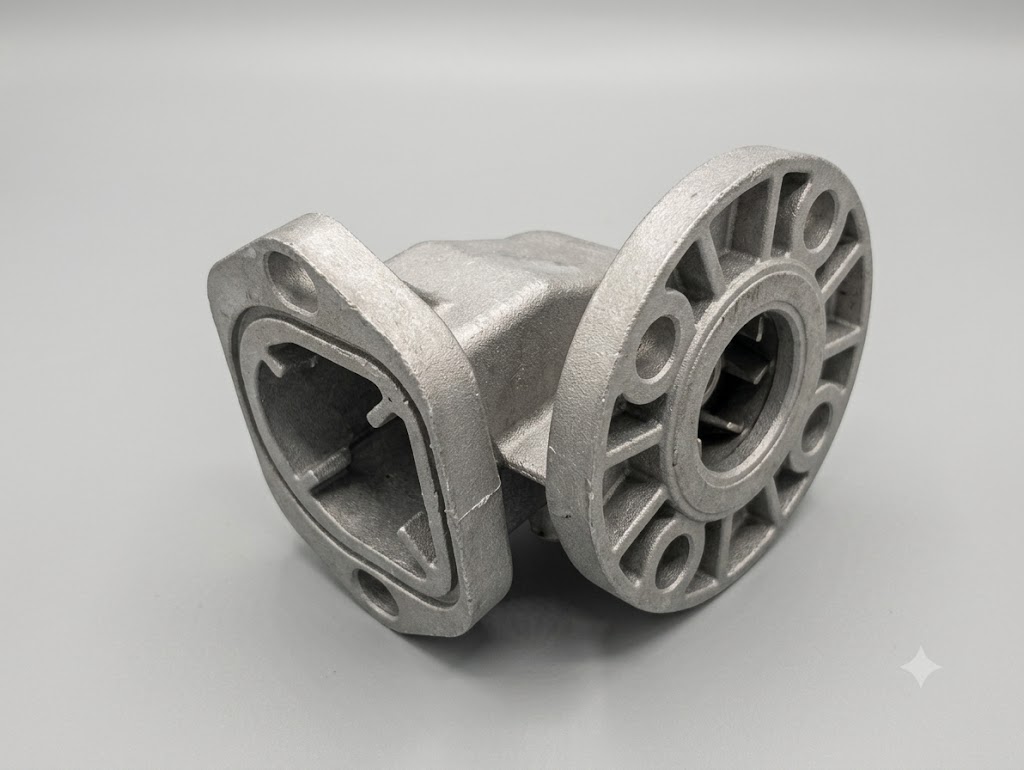

V 15-5250-01: ELBOW, DISCHARGE, BOLTED – A 90-degree fluid discharge elbow fitting that bolts onto the upper manifold of bolted pumps, routing pressurized process fluid cleanly into right-angle downstream piping loops.
V 15-5250-01: ELBOW, DISCHARGE, BOLTED – A 90-degree fluid discharge elbow fitting that bolts onto the upper manifold of bolted pumps, routing pressurized process fluid cleanly into right-angle downstream piping loops.
Key Features
- Heavy-duty 90-degree exit elbow component designed with a bolted flange to channel output process streams smoothly away.
- Handles high exit flow velocities and abrupt pressure surges without localized structural material fatigue leaks.
- High tensile strength metal construction prevents bowing, bending, or flexing during unexpected pipeline shocks.
- Pre-drilled bolt templates match original equipment manifolds perfectly to distribute clamping torque loads uniformly.
- Shields delicate surrounding moving pump valve components from experiencing physical alignment distortions loops.
Technical Specifications
| Brand / Manufacturer | Wilden |
| Operating Temperature Limits | -20°F to 300°F (-29°C to 149°C) continuous process boundaries |
| Maximum System Pressure Limits | Withstands dynamic fluid system operating thresholds up to 125 PSI (8.6 Bar) |
| Material Compliance Standards | Heavy Die-Cast Structural Aluminum Alloy |
| Dynamic Fluid Path Action & Intended Service | Metallic 90-degree flanged discharge elbow; directs dynamic pressurized fluid upward into the upper outflow manifolds |
